1.6ghz dual core high performance processor
full gigabit interface adapt to bandwidth over 500m;
1-4 variable wan ports, load balancing;
thousands of internet applications;
stable capacity of 100 units;
ap management template automatically delivered;
cloud platform management, convenient and efficient remote operation and maintenance
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

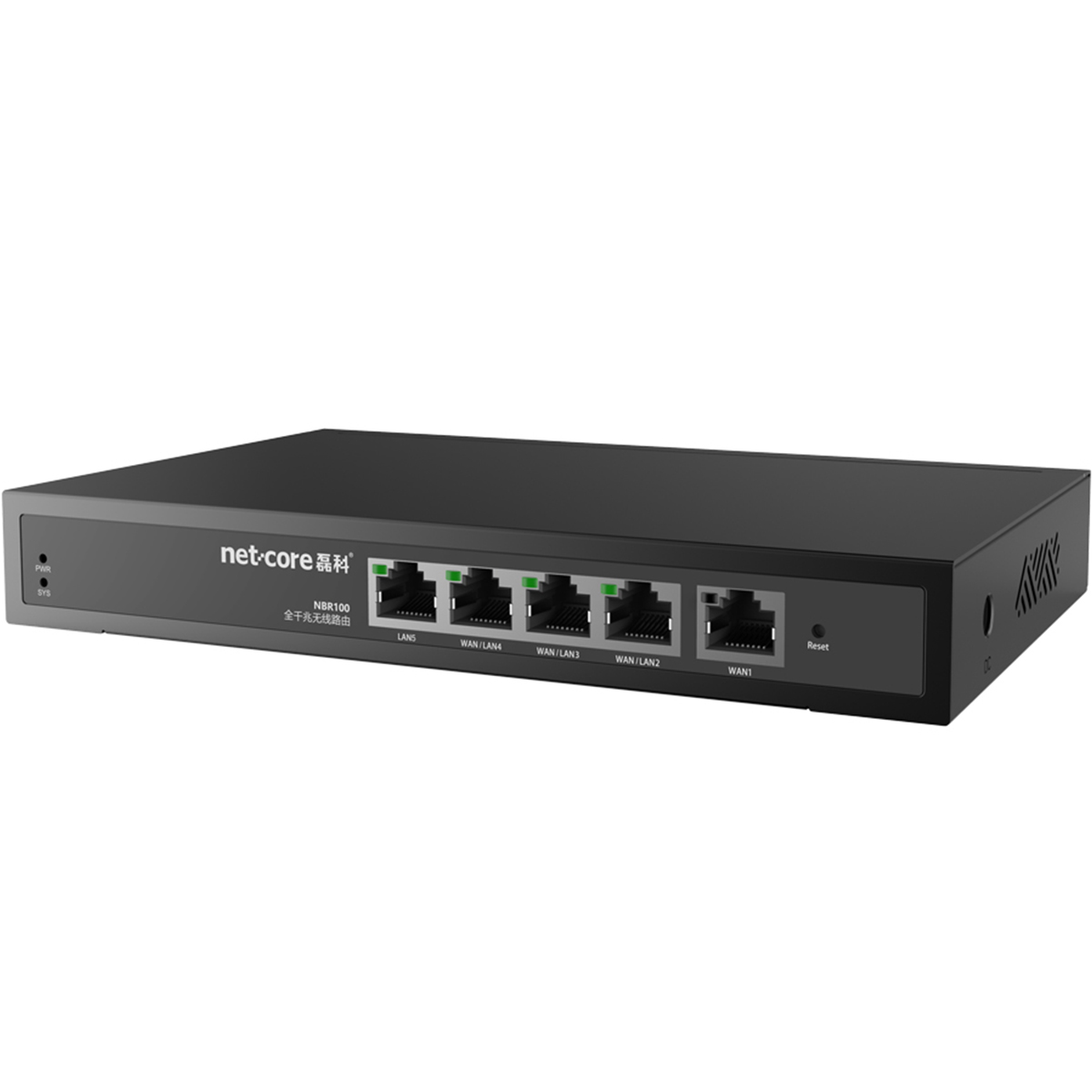

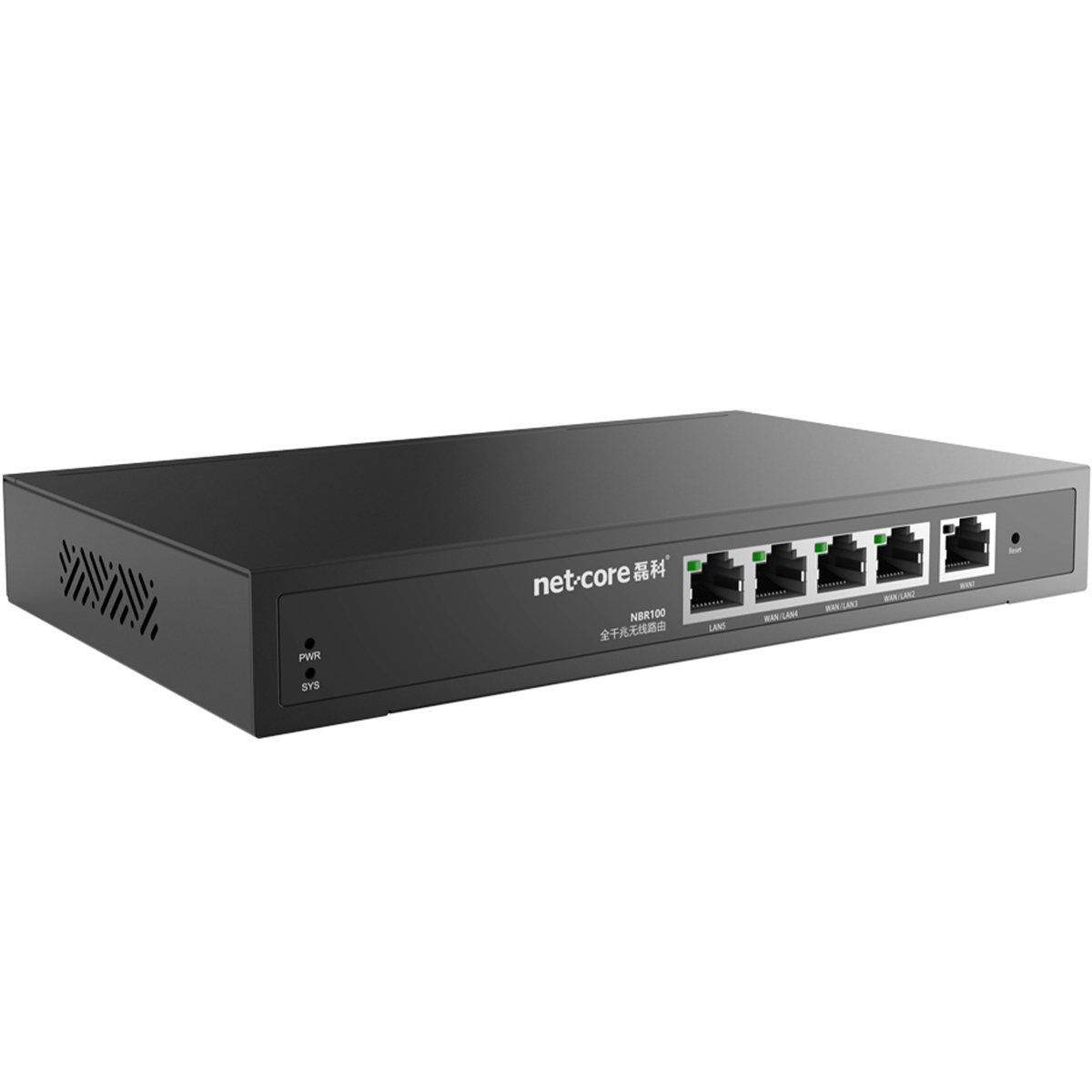

| product model | nbr100 |
| standard protocol | ieee802.3,ieee802.3u,ieee802.3z ,ieee802.3x,ieee802.1x |
| port |
lan port：4x100/1000m auto mdi/mdix rj45 ports |
| forwarding rate | 10/100/1000mbps |
| cpu | 1ghz |
| flash | 16mb |
| memory | 128mb |
| led display | pwr、sys、port status |
| button | 1×reset |
| size | 200×124.4×28mm |
| power | 12v/1a |
| working environment |
operating temperature: 0°c ~ 40°c storage temperature: -20°c ~ 70°c operating humidity: 10% ~ 90%, non-condensing storage humidity: 5% ~ 90%, non-condensing |
| setup wizard |
quick guide expert guide |
| system status | overview state system log host monitoring real time monitoring historical monitoring app statistics qq online list interface overview |
| network settings |
extranet settings |
| ac management | ac control ap settings control ap template settings ap radio settings ap advanced settings ap device management ap settings upgrade |
| flow control multi-wire | multi-line strategy single line multi-dial intelligent flow control fixed flow control |
| group management | ip group time group port group app group mac group domain name group |
| behavior management | one-click control qq whitelist firewall rules url redirection url filtering dns filtering web access record |
| virtual private network | pptp server pptp client l2tp server l2tp client ipsec |
| advanced features | anti-secondary routing shared decipher pppoe relay port mirroring wake on lan |
| system management | system settings toolbox long ping join the cloud timed task router password firmware upgrade feature library upgrade reset backup/restore |
