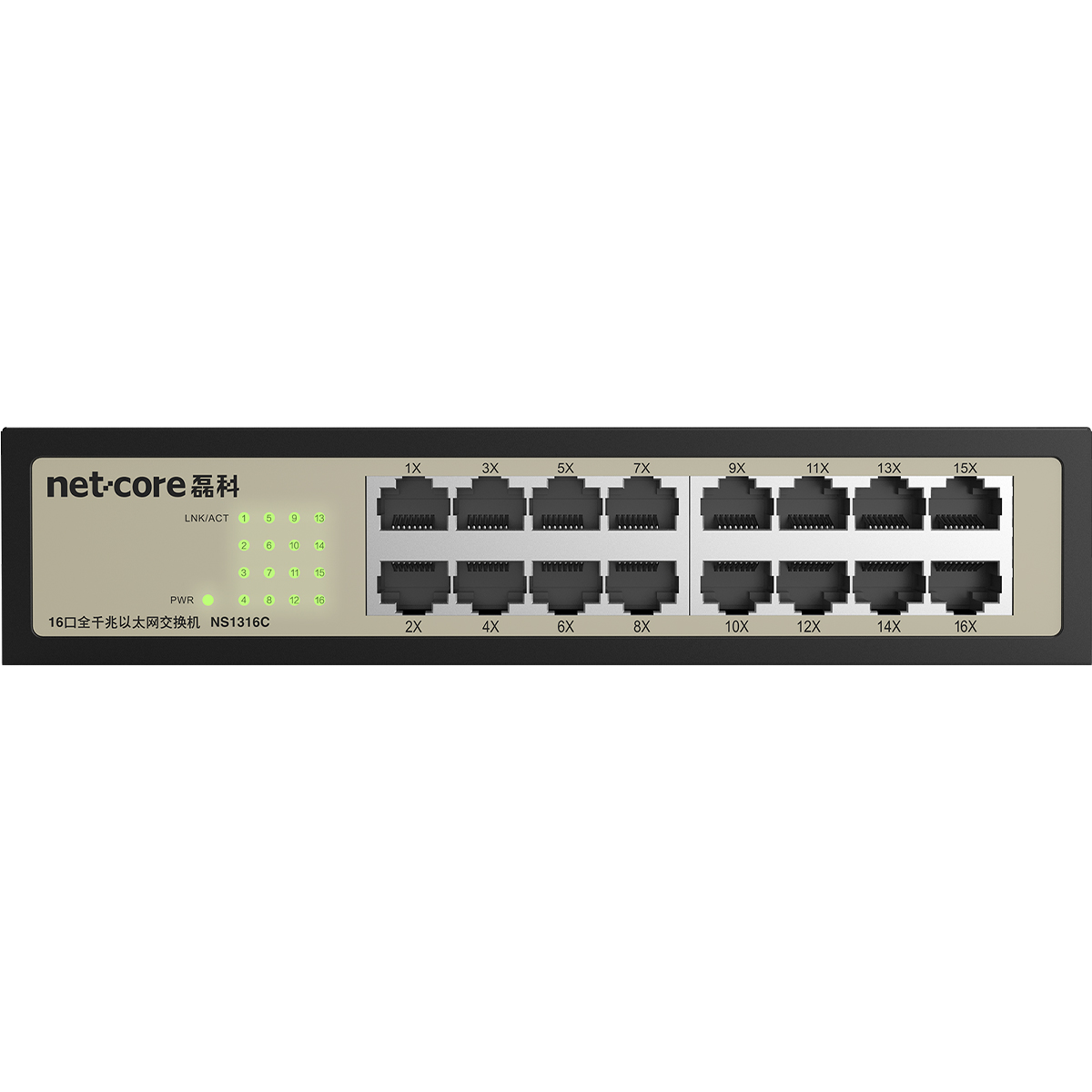

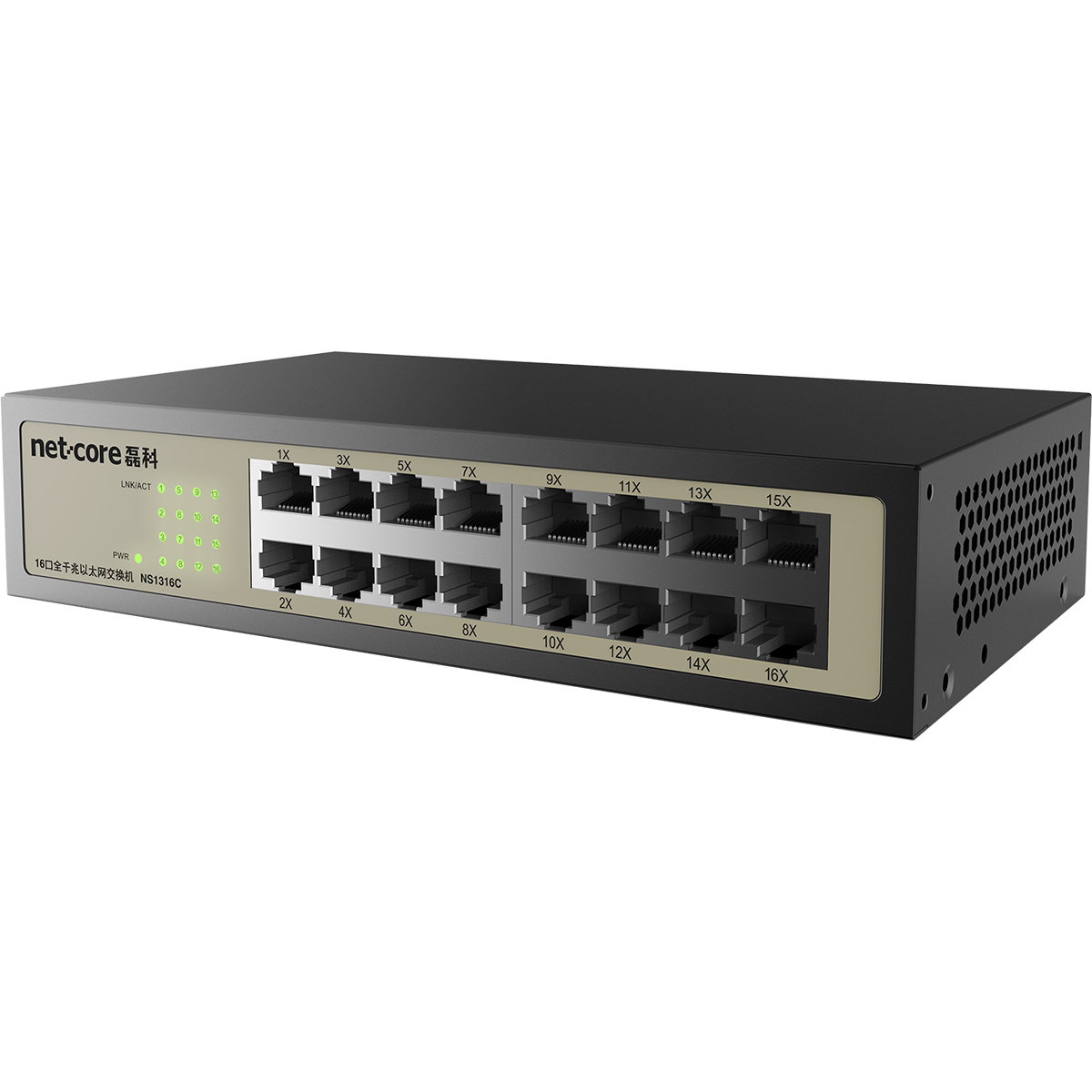

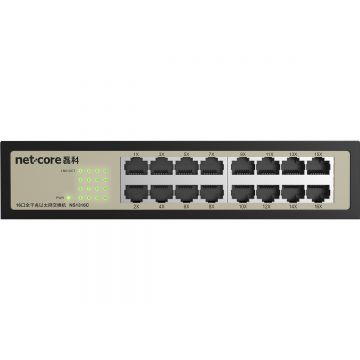

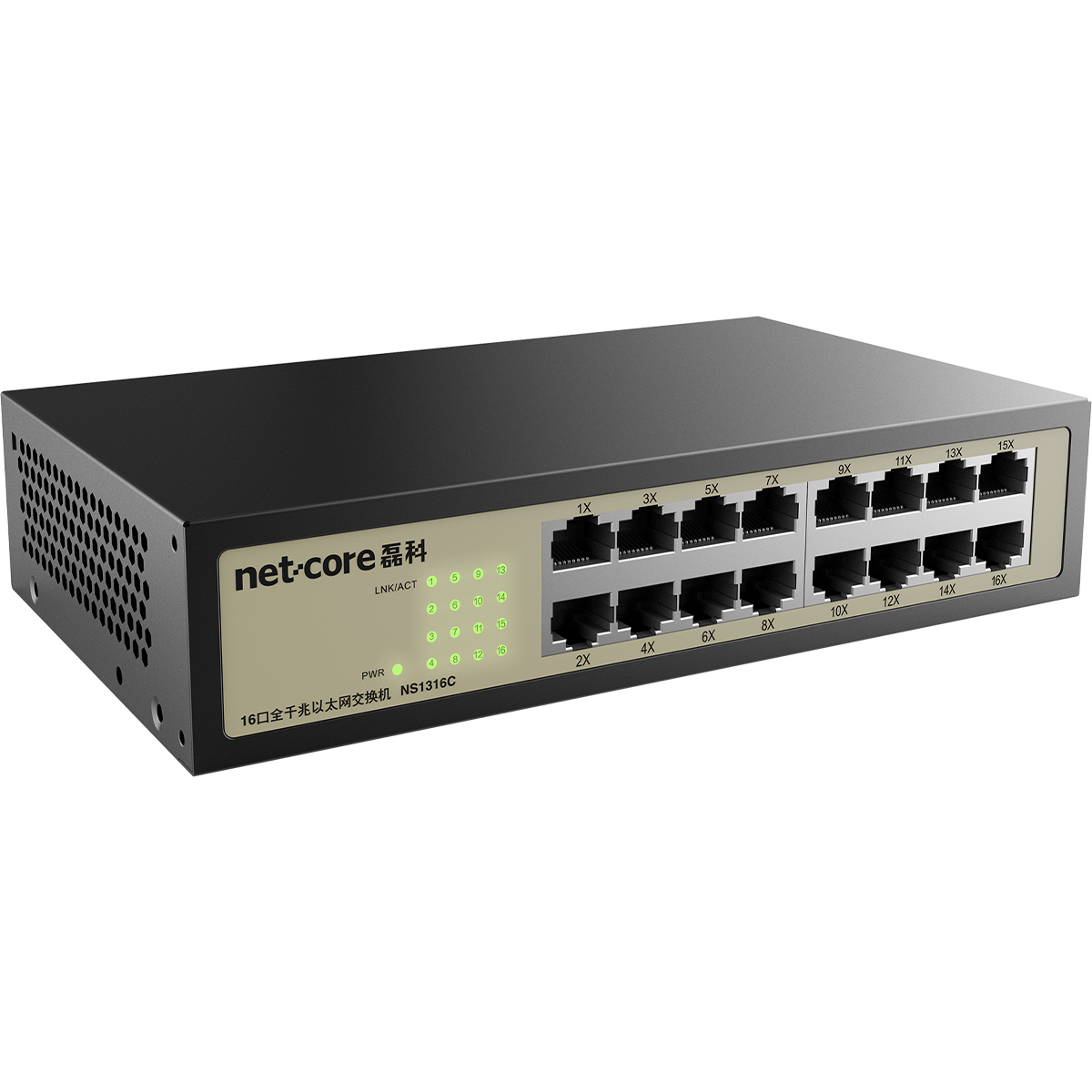

16ge gigabit ethernet desktop switch

-follow ieee802.3, ieee802.3u, ieee802.3z, ieee802.3x ethernet protocol standards

-32gbps backplane bandwidth, 16x10/100/1000mbps adaptive ports, to meet multi-scenario use

-each port supports full-/half-duplex working mode

-adapt to desktop and rack weak current boxes, unrestricted deployment

-automatic address learning and aging, 8k mac address table

-8-core metal shielded port, stable transmission without packet loss

  • 1
  • 4
  • 2
  • 3
1
4
2
3
ns1316c

product parameters

product hardware specifications

product model ns1316c
standard protocol ieee802.3,ieee802.3u,ieee802.3z,ieee802.3x
port

16*10/100/1000m rj45 lan port

rom 4m
forwarding rate 10/100/1000mbps
store and forward support
backplane bandwidth 32g
mac address table 8k
size 200mm(l)×118mm(w)×44mm(h)
led display pwr、16lan link
working environment

operating temperature: 0°c ~ 40°c

storage temperature: -40°c ~ 70°c

operating humidity: 10% ~ 90%, rh  non-condensing

storage humidity: 5% ~ 90%, rh non-condensing

power 12v/1a
weight 700g
