internet behavior management function, flexible management and control of nearly a hundred of the most popular network applications, with rich control rules, improve employee work efficiency, save bandwidth, and ensure the smoothness of key network applications. vpn solution, the server supports simultaneous connection of 20 pptp vpns, the simplest configuration, the highest transmission performance, and guaranteed security. built-in powerful smart qos kernel policy.

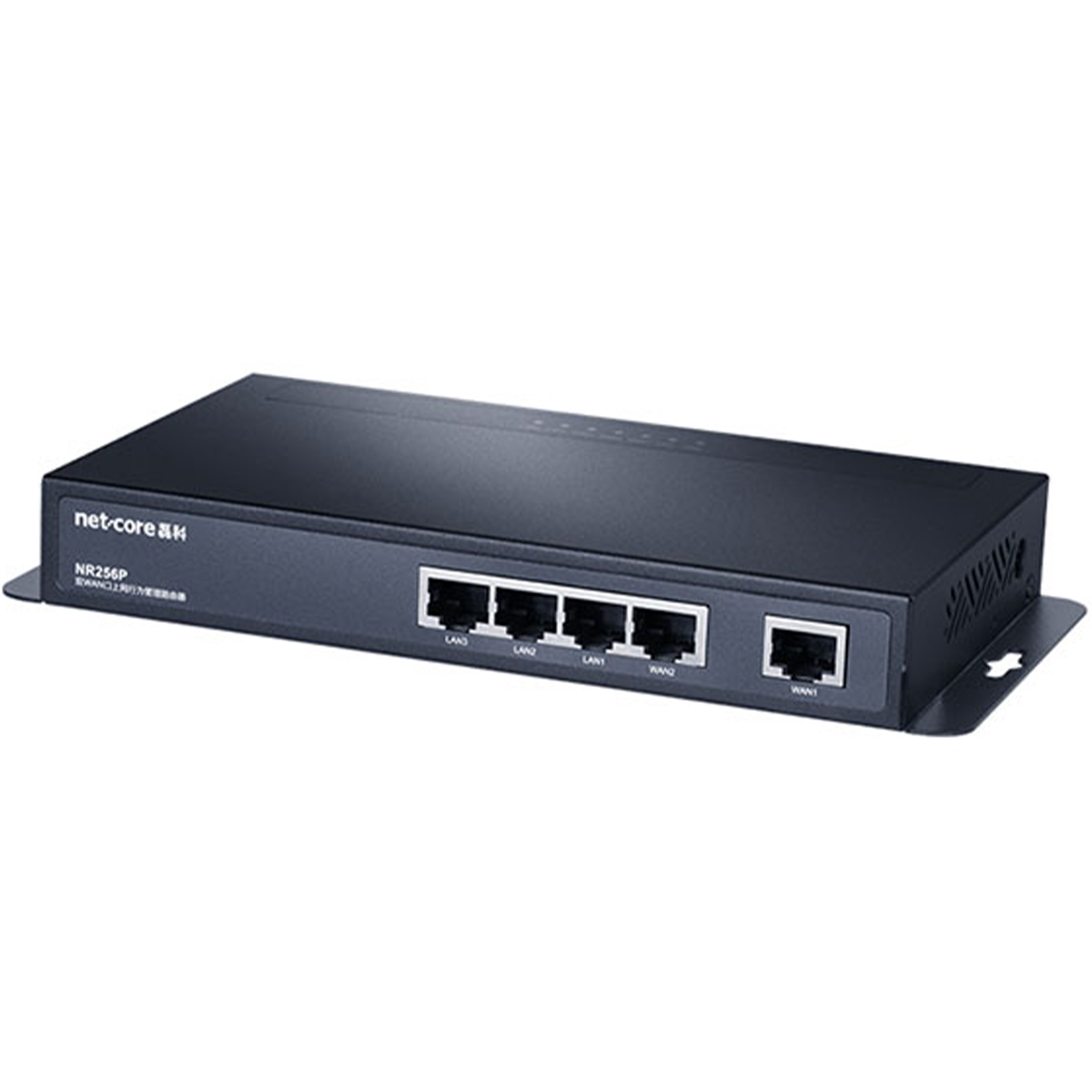

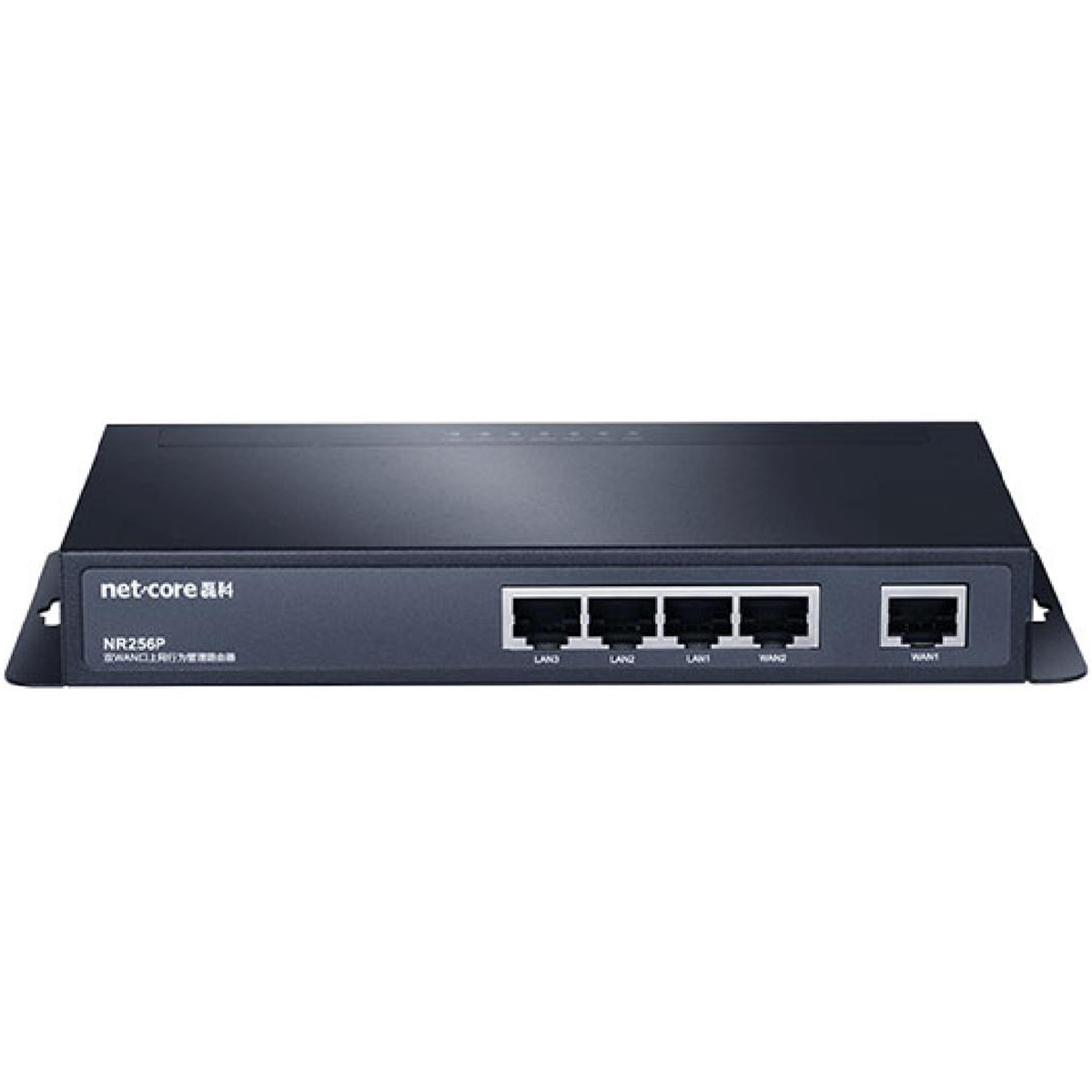

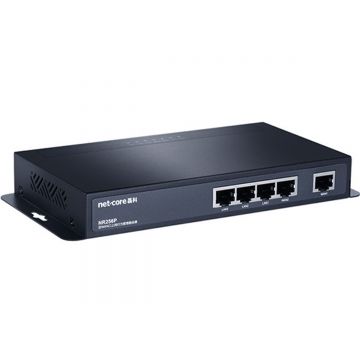

| product model | nr256p |
| standard protocol | ieee 802.3 10base-t、ieee 802.3u 100base-tx |
| port |
5*10/100m rj45 ports（auto mdi/mdix） |
| network medium | 100base-tx：cat5 utp |
| forwarding rate | 10/100mbps |
| flash | 16mb |
| memory | 256m |
| led indicator | 5个10/100mbps（link/act）、power |
| size | 180mm*100mm*27mm（l*w*h） |
| power | 100~240v ac，50/60hz |
| operating environment | operating temperature: 0°c ~ 40°c
storage temperature: -20°c ~ 70°c operating humidity: 10% ~ 90%, non-condensing storage humidity: 5% ~ 90%, non-condensing |
| package | 1*nr256p 1*power adapter 1*user manual 1*statement card |
| system state management | support host monitoring (512 entries), user info display, log service, ping and traceroute network tools, port settings, packet capture settings |
| extranet access configuration | support up to 2 wan ports, multi-wan port intelligent load |
| intranet access configuration |
support lan port configuration, pppoe server, access mode control, multiple address pools |
| time/user group | support time period setting, up to 30 entries for user/ip group |
| cyber security | network attack defense, ip/mac address binding, arp attack defense, mac address filtering, ip access control, dns filtering and redirection settings, packet inspection, firewall |
| internet behavior management | url classification management, url black/white list management, blocking redirection, mac address filtering, proxy filtering, socket4/socket5 filtering, http filtering, qq access control and recording, ali wangwang access control, dazhihui and tonghuashun stock software filtering, bt and thunder download control, video website access control, electronic bulletin quantity setting (30 entries) |
| qos | smart qos, app priority settings (256 entries), connection limit, host bandwidth control settings |
| vpn | support pptp server and access settings, support l2tp server and access settings, support ipsec l2tp, support pptp and l2tp client account settings |
| advanced settings | url black/white list settings, static routing settings (256 entries), dynamic domain name settings, port mirroring, port isolation, virtual server, dmz, static nat (10 entries), upnp, group rule settings |
| system tools | management option settings, time settings, software upgrade settings, reset, parameter import/export, telnet in background (user), scheduled restart |
| networking function | support wechat to connect to wifi, support qvlan networking |
| ac control | supports management of 20 aps |
upgrade instructions
add intelligent carrier policies, automatic speed measurement, isolation applications in the vlan environment (with the ap to realize the guest network), remote configuration of the cloud platform, and repair defects.
