specially designed for industrial environments
-40°c-85°c industrial class wide temperature design
industrial class aluminum alloy shell, integrated casting technology
din rail installation, construction is simple and flexible
dual redundant power input, dual anti-static
6kv industrial class lightning protection,being used extensively

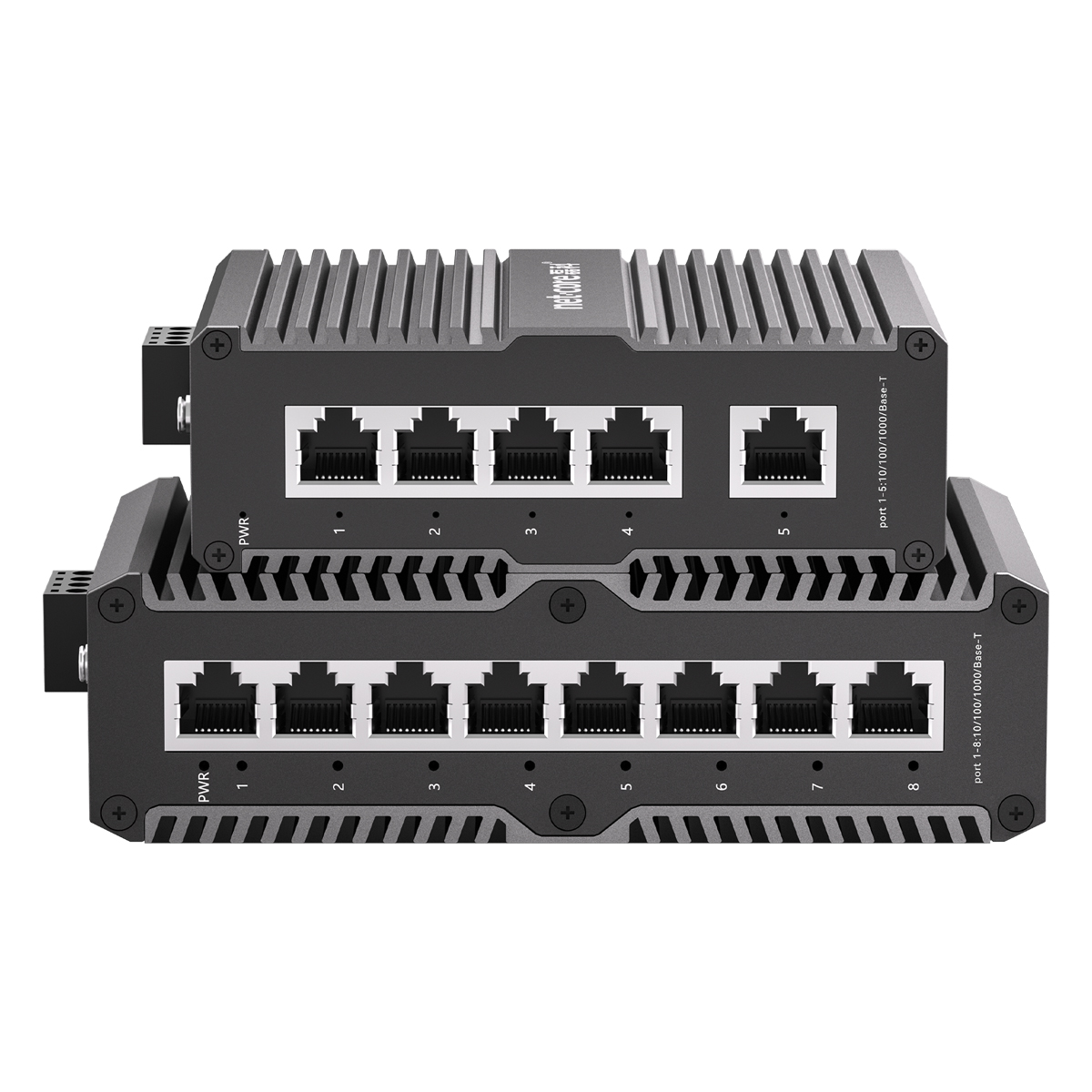

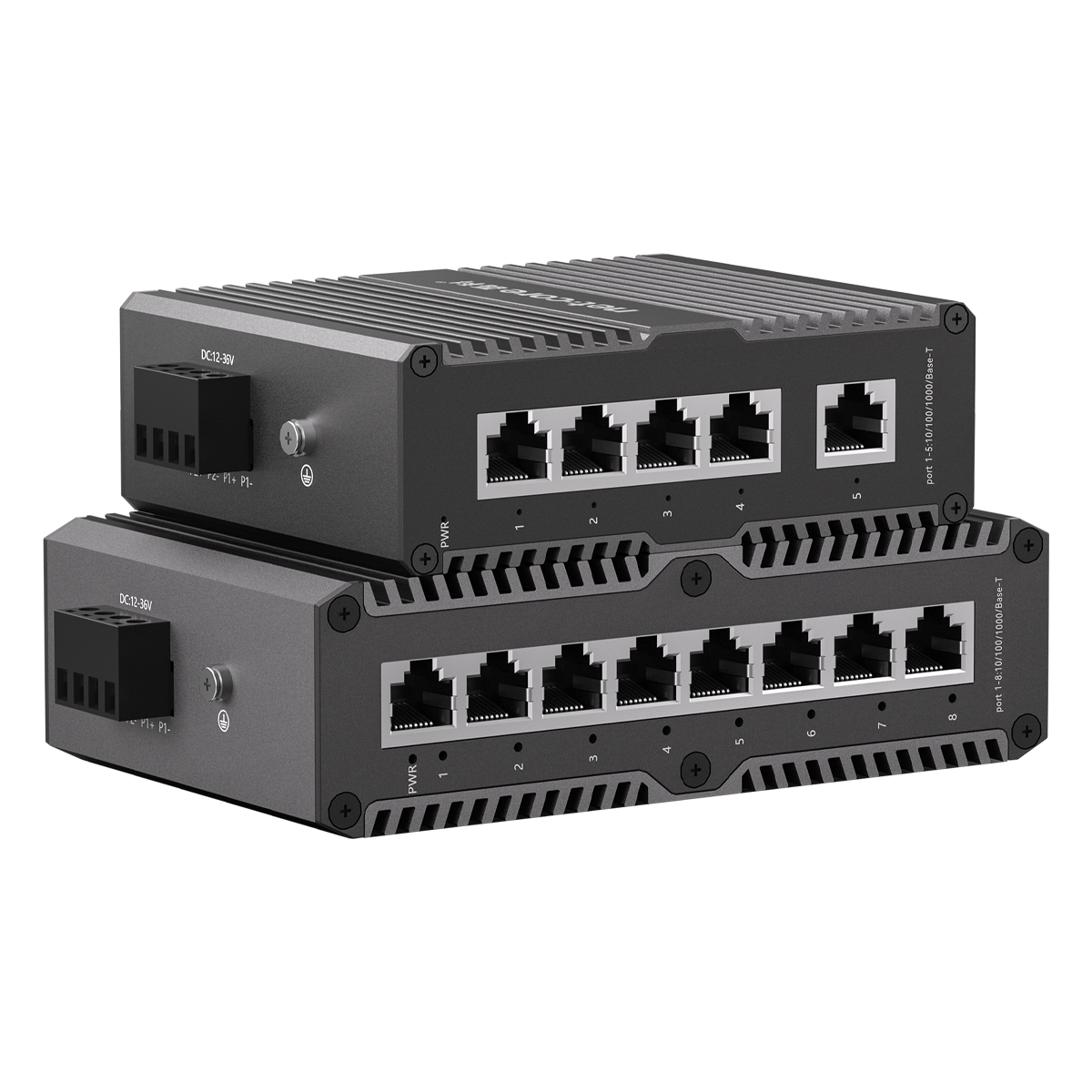

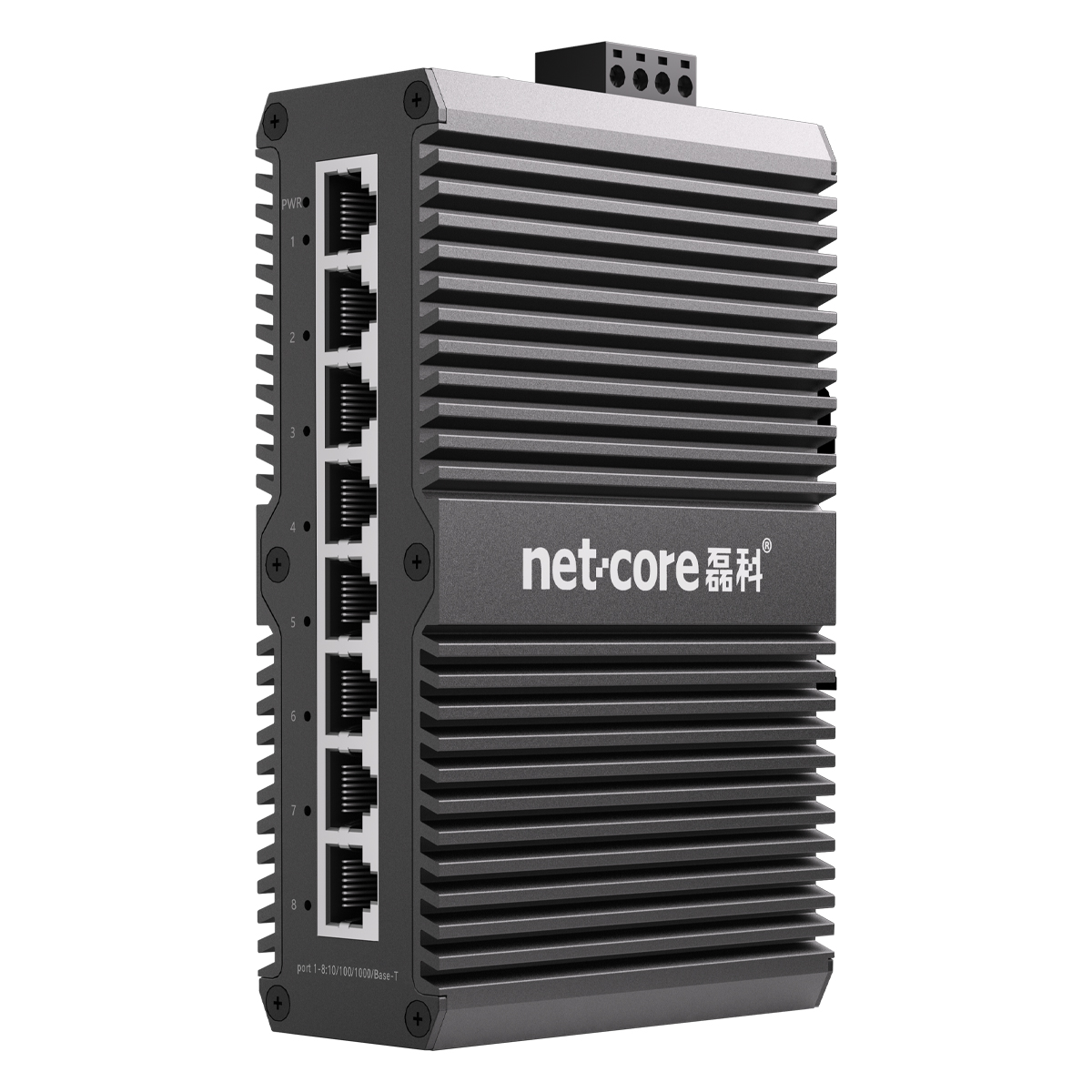

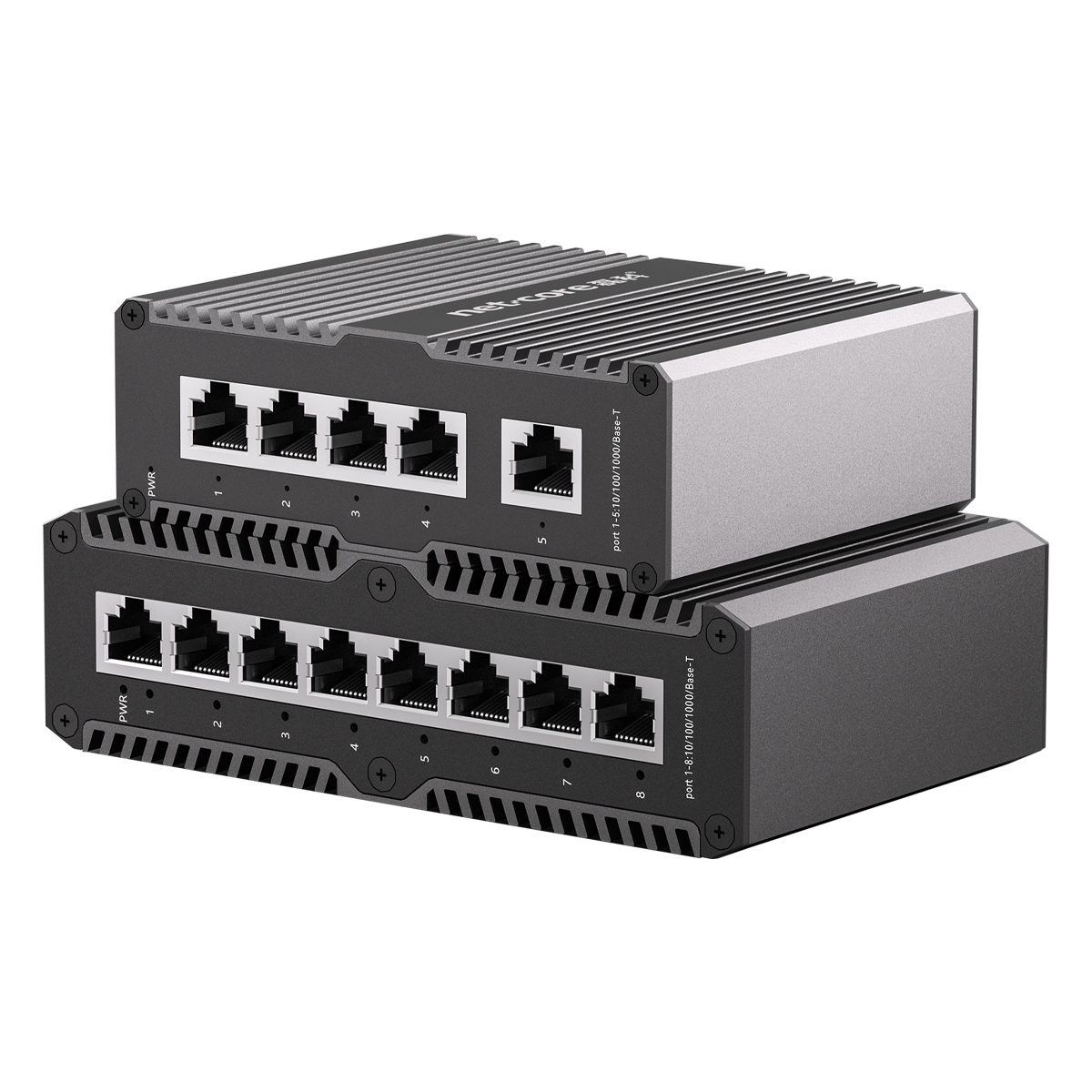

product model | nis3008g pro |
port | 8*10/100/1000mbps rj45 ports |
standards and protocols | ieee 802.3 ethernet media access control protocol ieee 802.3i 10base-t ethernet ieee 802.3u 100base-tx fast ethernet ieee 802.3x flow control |
backplane bandwidth | 16g |
mac address table | 4k |
power supply | dc 12~36v |
network medium |
100base-tx: 4*(cat5e)or above utp/stp(≤100m) 100base-tx: 2*(cat5)or above utp/stp(≤100m) |
size | 140mm*86mm*40mm |
working environment |
operating temperature: -40°c ~ 85°c storage temperature: -45°c ~ 85°c operating humidity: 10% ~ 90%, rh non-condensing storage humidity: 5% ~ 90%, rh non-condensing |
