24 port fast ethernet switch

-follow ieee802.3 ethernet and ieee802.3u fast ethernet protocol standards

-4.8gbps backplane bandwidth

-24*10/100mbps tx adaptive ports

-each 10m/100m port supports full-/half-duplex working mode

-3.57mpps packet forwarding rate, automatic mdi/mdi-x line sequence crossover

-automatic address learning and aging, 8k mac address table

  • 1
  • 2
  • 3
1
2
3

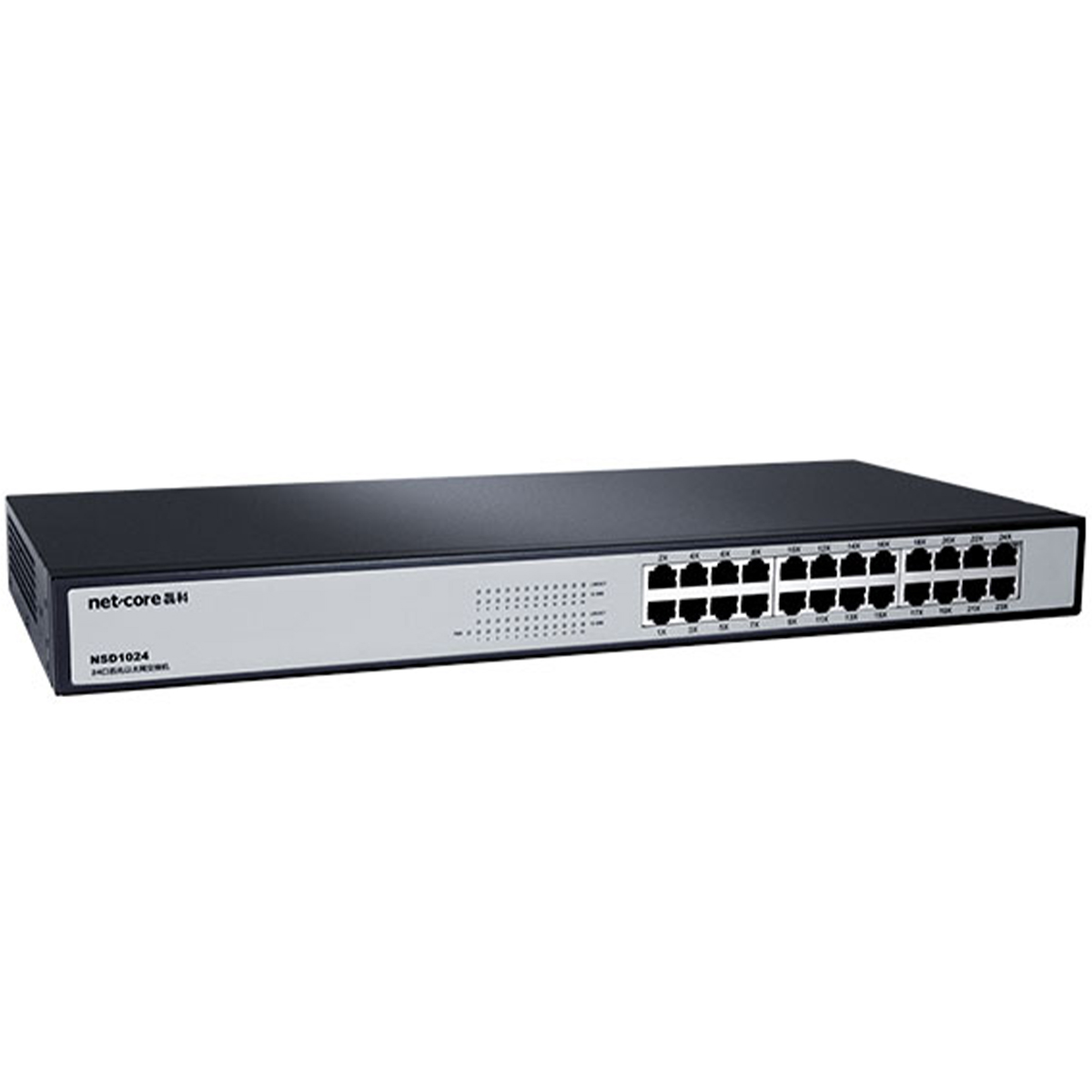

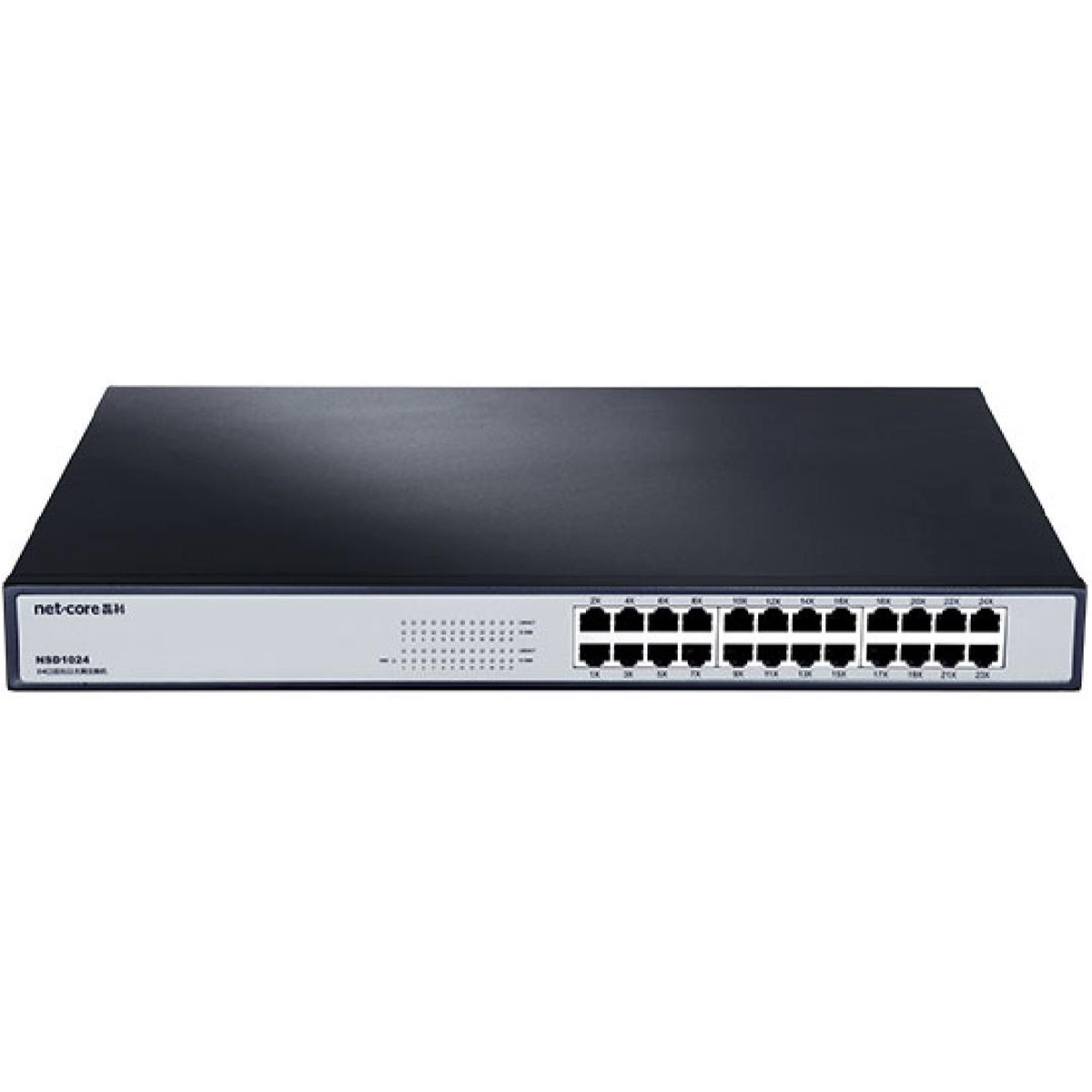

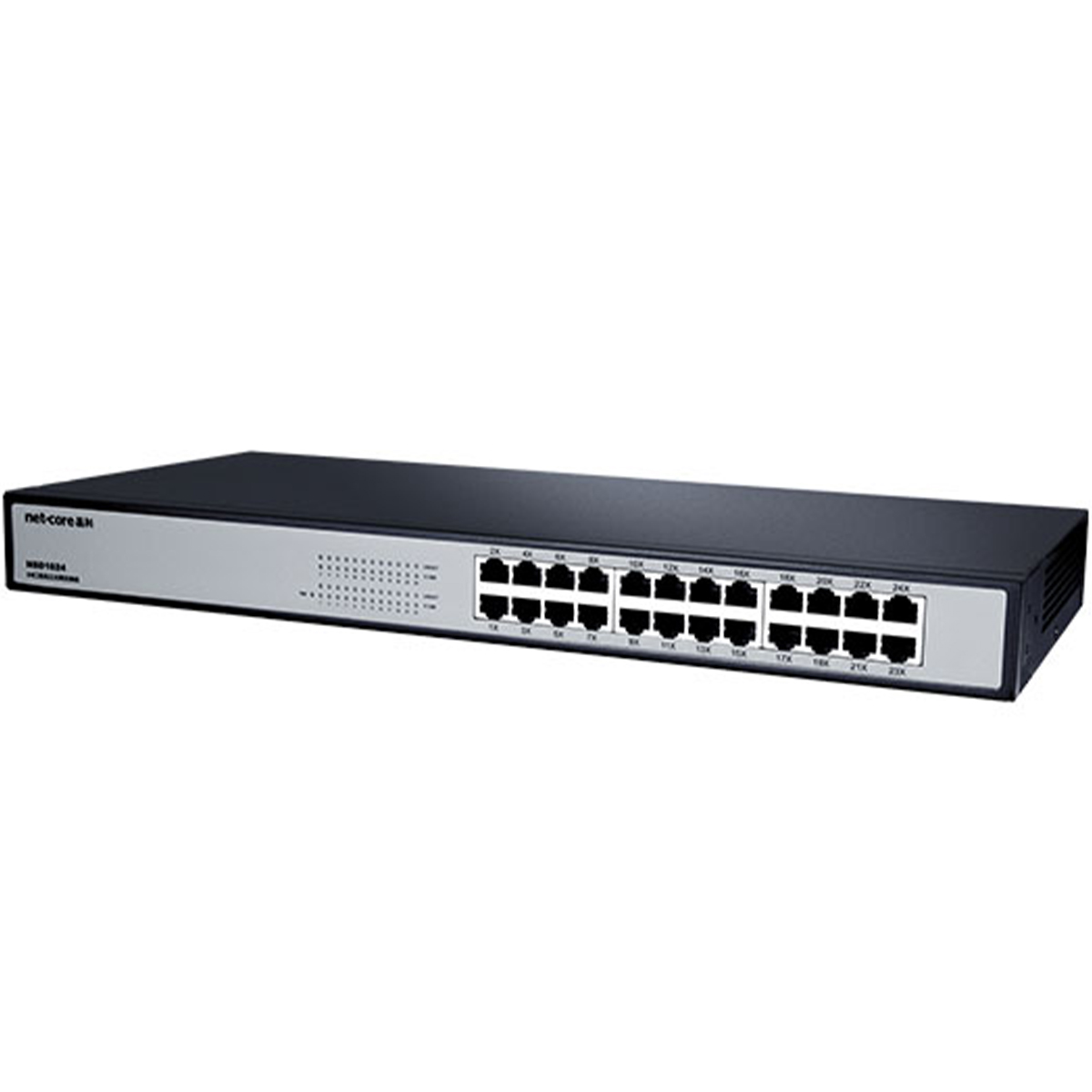

nsd1024

product parameters

product hardware specifications

product model

nsd1024
standard protocol ieee 802.3 、ieee 802.3u 、ieee 802.3x
network medium

10base-t: cat3 or above utp

100base-tx: cat5 or above utp

port 24*10/100m rj45 lan port
forwarding rate 10/100mbps
backplane bandwidth

4.8gbps

mac address table 8k
size 440 mm(l)* 200mm(w)* 44mm (h)
led display 10/100mbps(link/act)、power
power 100-240v ac,50/60hz
access method csma/cd
working environment

operating temperature: 0°c ~ 40°c

storage temperature: -20°c ~ 70°c

operating humidity: 10% ~ 90%, rh  non-condensing

storage humidity: 5% ~ 90%, rh non-condensing
