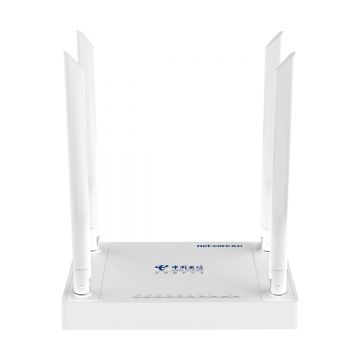

nw1300ac-九游会棋牌

full gigabit wireless router

china telecom gigabit smart optical broadband designated product

support china telecom e-link intelligent interconnection protocol

1200m wireless transmission rate

128m flash 128m memory

plug and play

  • 1
1
nw1300ac

product parameters

product hardware specifications

supported standards and protocols ieee 802.11b/g/n/ac,ieee 802.3,ieee 802.3u, ieee 802.3ab
port

1×10/100/1000m auto mdi/mdix rj45 wan port
4 ×10/100/1000m auto mdi/mdix rj45 lan port
1×usb2.0

network media ieee 802.3 10base-t, ieee 802.3u 100base-tx,
ieee 802.3ab 1000base-tx
wireless rate 2.4g:300m
5g:867m
antenna 2.4g:5dbi ×2,external placement
5g:5dbi ×2,external placement
led indicator pwr, 2.4g,5g, wps, wan, lan1-4,usb
flash 128mb
memory 128mb ddr2
button wps、default、wifi switch
switch none
weight 262g
dimensions 170mm ×111 mm ×21 mm(l×w×h)
power supply dc 12v/1a
operating environment operating temperature: 0°c ~ 40°c
storage temperature: -20°c ~ 70°c
operating humidity: 10% ~ 90%, non-condensing
storage humidity: 5% ~ 90%, non-condensing
certification 3c
packing list power adapter 1, quick installation guide 1, dual-band gigabit wireless router 1,1 network cable

product software specifications

basic functions

blacklist management
wireless switch
mtu settings
mac address cloning
connected device management
time settings
automatic/manual upgrade
custom dns

extended function

signal strength adjustment
port mapping
guest network
wireless relay

dhcp service

dhcp server
client list
static address assignment

wireless security

wpa2-psk
wpa/wpa2 security mechanism

system tools

restore default
system log
