full gigabit ports, suitable for broadband access over 200m
1ghz high-end chip 128m memory, capacity of 60 units
high gain 4 antennas, villa-level signal coverage
2.4g/5g wireless dual-band signal, fully adaptable to high-speed 5g wireless network
wechat remote management, easy management of routers
standard protocol | ieee 802.11b/g/n/ac,ieee 802.3,ieee 802.3u |

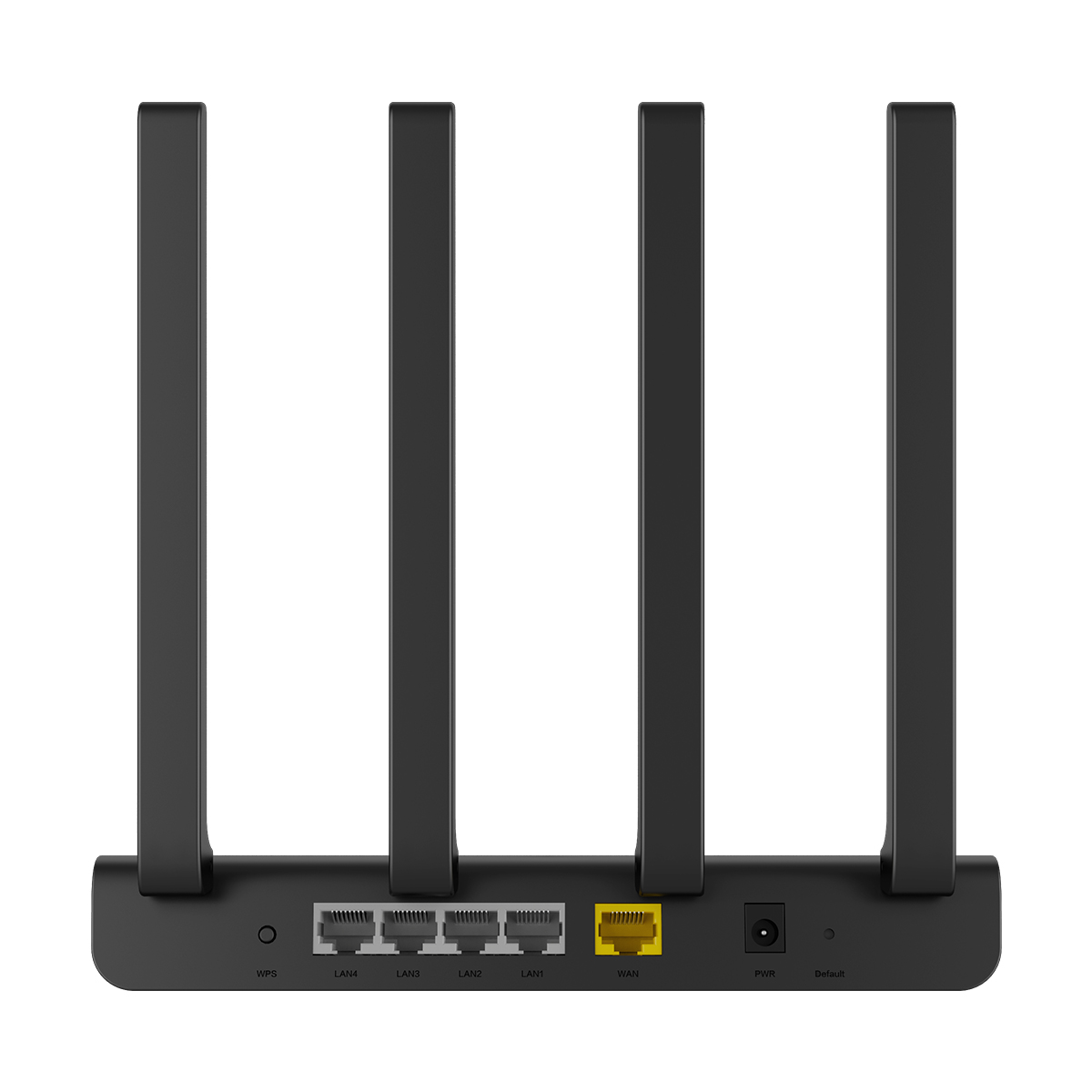

port |
1×10/100/1000m auto mdi/mdix rj45 wan port 4 ×10/100/1000m auto mdi/mdix rj45 lan port |
network medium | ieee 802.3 10base-t, ieee 802.3u 100base-tx, ieee 802.3u 1000base-tx |
wireless rate | 2.4g:300m 5g:867m |
antenna |
2.4 g: 5dbi × 2, external 5g: 5dbi × 2, external |
led indicator | pwr, 2.4g,5g, wps, wan, lan1-4 |
memory | 128mb ddr2 |
button | wps/default common |
switch | power switch ×1 |
weight | 262g |
dimensions | 170mm ×111 mm ×21 mm (l ×w ×h) |
power supply | dc 12v/1a |
operating environment | operating temperature: 0°c ~ 40°c storage temperature: -20°c ~ 70°c operating humidity: 10% ~ 90%, non-condensing storage humidity: 5% ~ 90%, non-condensing |
certification | 3c |
packing list | power adapter 1, quick installation guide 1, dual-band gigabit wireless router 1,1 network cable |
security function | ddos attack defense malicious url blocking lan attack defense anti-wi-fi squatter intrusion blacklist management |
basic functions | wireless switch troubleshooting mtu settings connected device identification mac address cloning connected device management time settings remote management automatic/manual upgrade custom dns |
extended function | signal strength adjustment child protection guest network wisp universal relay smart home port mapping peanut shell host monitoring |
dhcp service | dhcp server client list static address assignment |
wireless security | wpa2-psk wpa/wpa2 security mechanism |
system tools | restore default backup and load configuration system log traffic statistics |
