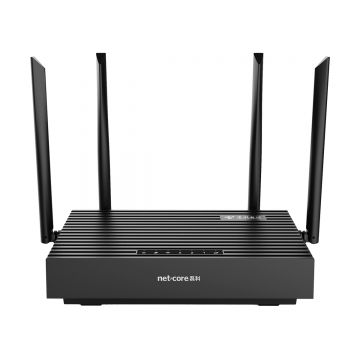

telecom version 1800m home wifi 6 wireless router

wifi 6 wireless protocol is supported

equipped with 1ghz high-end chip, 256mb flash memory 128m memory

all gigabit ports enjoy gigabit network speed, 1800mbps wireless dual-band signal

mu-mimo ofdma technology, lower delay, faster speed

nx1-t telecom edition

product parameters

product hardware specifications

model	nx1-t （wifi6）
supported standards and protocols	ieee802.11 b/g/n/ac/ax
port	1个10/100/1000m auto mdi/mdix rj45 wan port 3个10/100/1000m auto mdi/mdix rj45 lan port
forwarding rate	10/100/1000mbps
wireless specifications	2.4g band: 574mbps; 5g band: 1201mbps
antenna	6 high-gain omnidirectional antennas
cpu	1ghz (dual core)
ram	256mb（internally packaged in the main ic）
rom	128mb
button	default×1
led indicator	pwr、internet、wifi、lan1、lan2、lan3、wan
size	236mm×144mm×50mm
power supply	12v/1a
operating environment	operating temperature: 0°c ~ 40°c storage temperature: -20°c ~ 70°c operating humidity: 10% ~ 90%, non-condensing storage humidity: 5% ~ 90%, non-condensing

product software specifications

common functions	quick configuration one key speed test troubleshooting internet settings wi-fi settings signal conditioning internet-connected devices guest network intranet settings ipv6 mesh networking wireless relay iptv port mapping
security	malicious url firewall internet hijacking firewall wi-fi squatter firewall blacklist management
basic settings	system upgrade restart router initialize (reset) dial log change management password my router information time settingdeveloper mode
others	emergency recovery xiaoyi app mobile web
