-provide 8* 10/100m poe ports 2ge uplink rj45 ports,
-the power supply of the machine is optional 120w, the maximum power supply of a single port is 30w
-industrial grade all-steel shell, strong heat dissipation, to ensure more stable operation of the switch
-support ordinary switch/250m/vlan isolation transmission
-smart buffer cache optimization for surveillance
-all ports support auto mdi/mdi-x function and wire-speed forwarding capability
-plug and play, no configuration required
|
product model |
ns110gp v2 |
| standard protocol | ieee802.3af/at series protocol ieee802.3 ethernet media access control protocol ieee802.3i 10base-t ethernet ieee802.3u 100bast-tx fast ethernet ieee802.3ab 1000base-t gigabit ethernet ieee802.3x flow control |
| port |
8*10/100m poe rj45 port |
| poe standard |
standard ieee802.3af/at protocol, the maximum power of a single port is 30w, and the maximum power of the machine is 120w support overcurrent, overvoltage, short circuit protection support high power pd soft start support sequential boot support certified non-standard pd power receiving |
| port lightning protection | common mode: 4kv
differential mode: 500v |
| forwarding mode | store and forward |
| basic functions | follow ieee802.3 ethernet and ieee802.3u fast ethernet protocol standards
support ieee802.3at/af standard, compatible with powered device (pd) supporting ieee802.3at/af support ieee802.3x full-duplex flow control and backpressure half-duplex flow control all ports have wire-speed forwarding capability supports self-learning and aging of mac addresses built-in 120w power supply |
| backplane bandwidth |
7.6gbps |
| mac address table | 2k |
| access method | csma/cd |
| default working mode |
support ordinary switch/250m transmission |
| size | 190mm(l)* 140mm(w)* 43mm (h) |

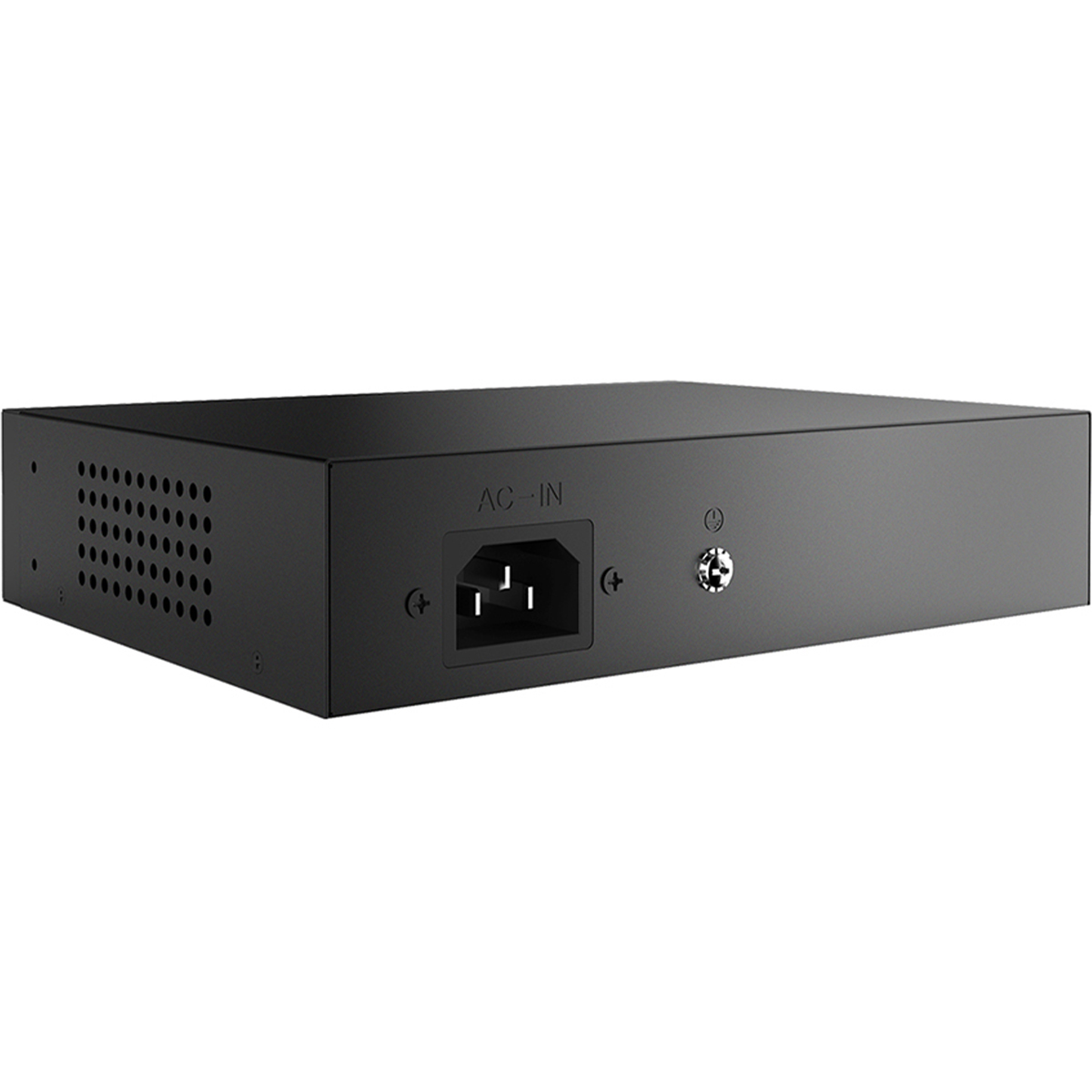

| power | ac input 100v-250v 50/60hz |
| working environment |
operating temperature: 0°c ~ 40°c storage temperature: -40°c ~ 70°c operating humidity: 10% ~ 90%, rh non-condensing storage humidity: 5% ~ 90%, rh non-condensing |
