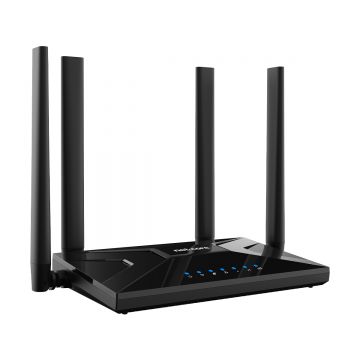

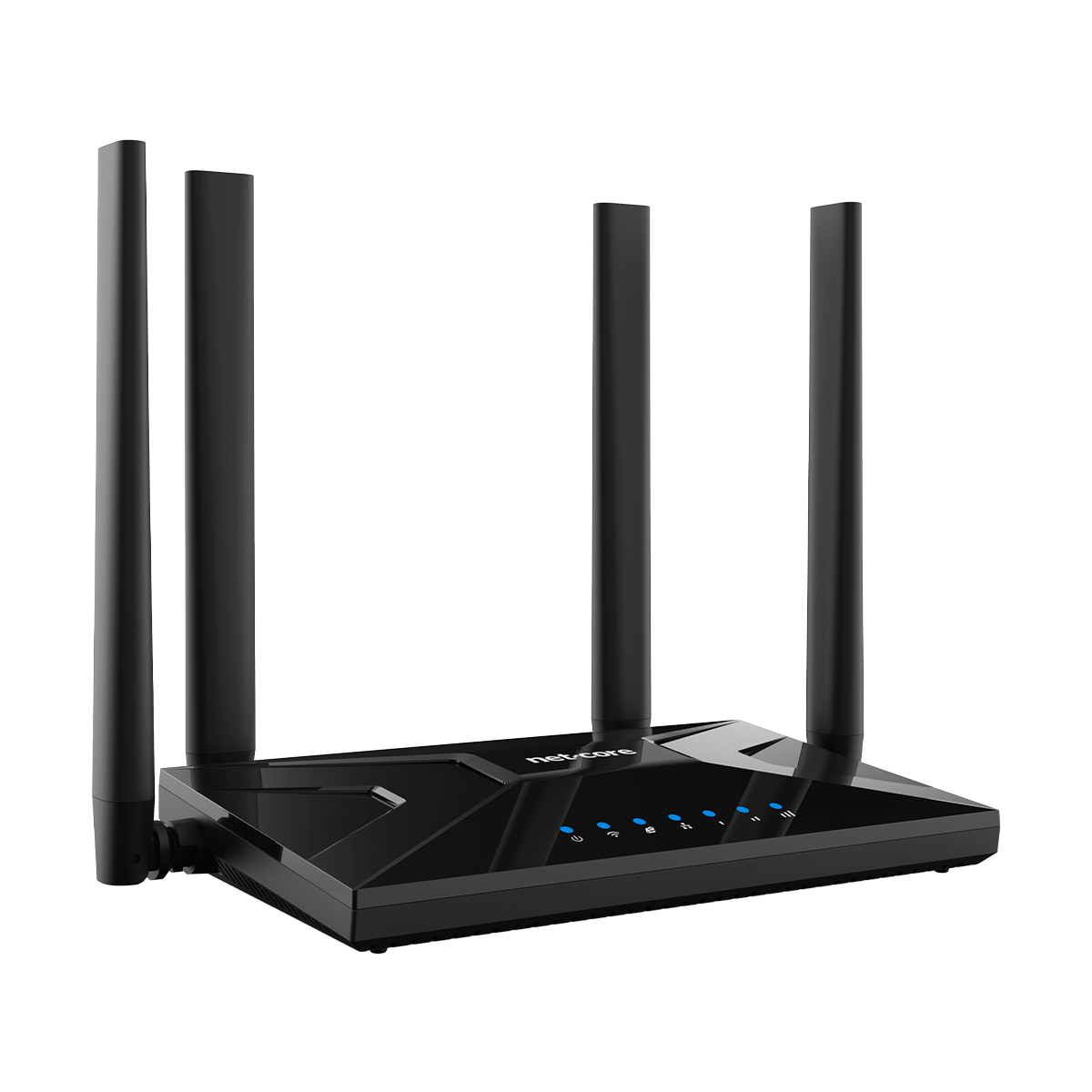

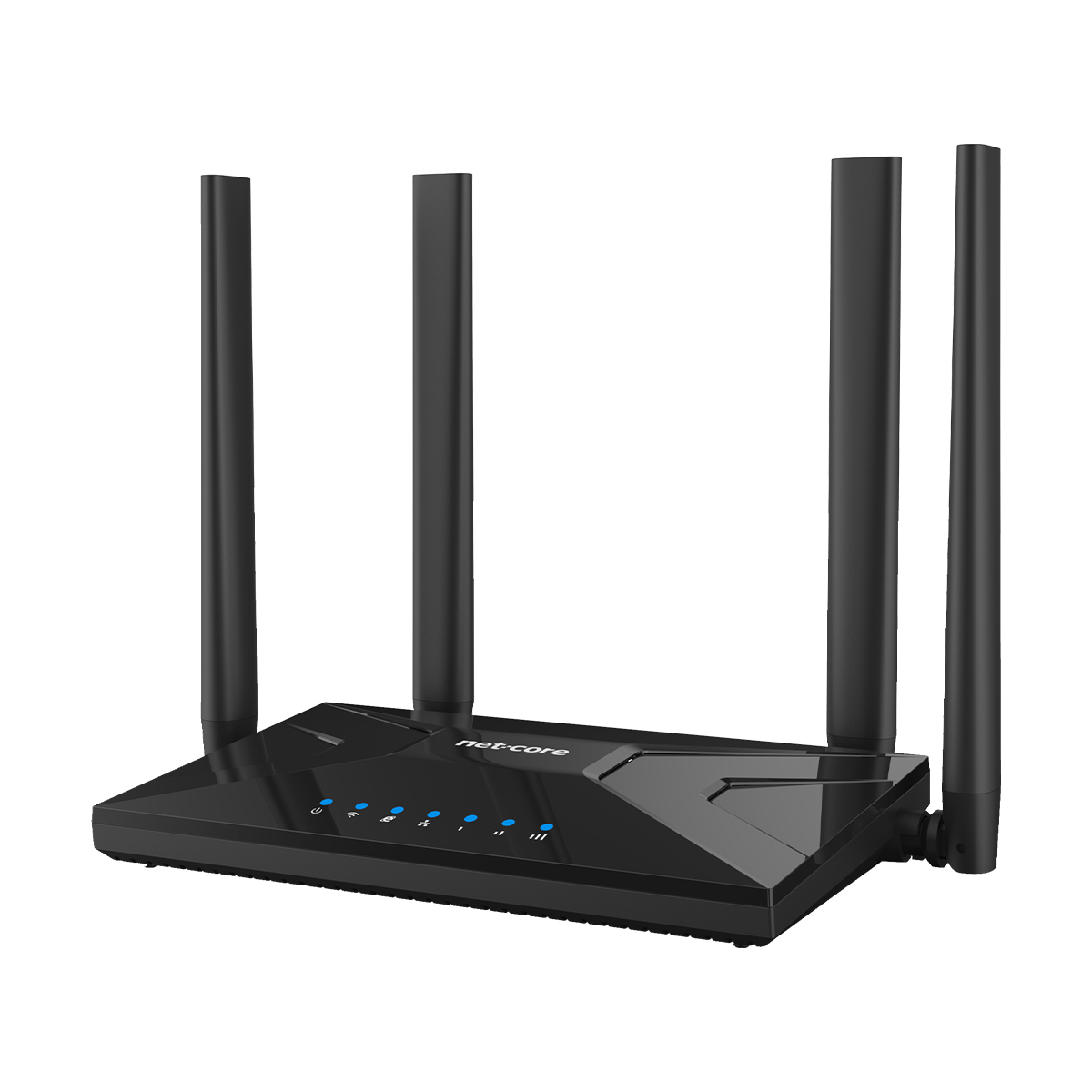

4g plug-in wireless router

4g to wired, 4g to wi-fi

two 4g antennas  two wifi antennas, strong signal

support triple networks, plug and play, no setup needed

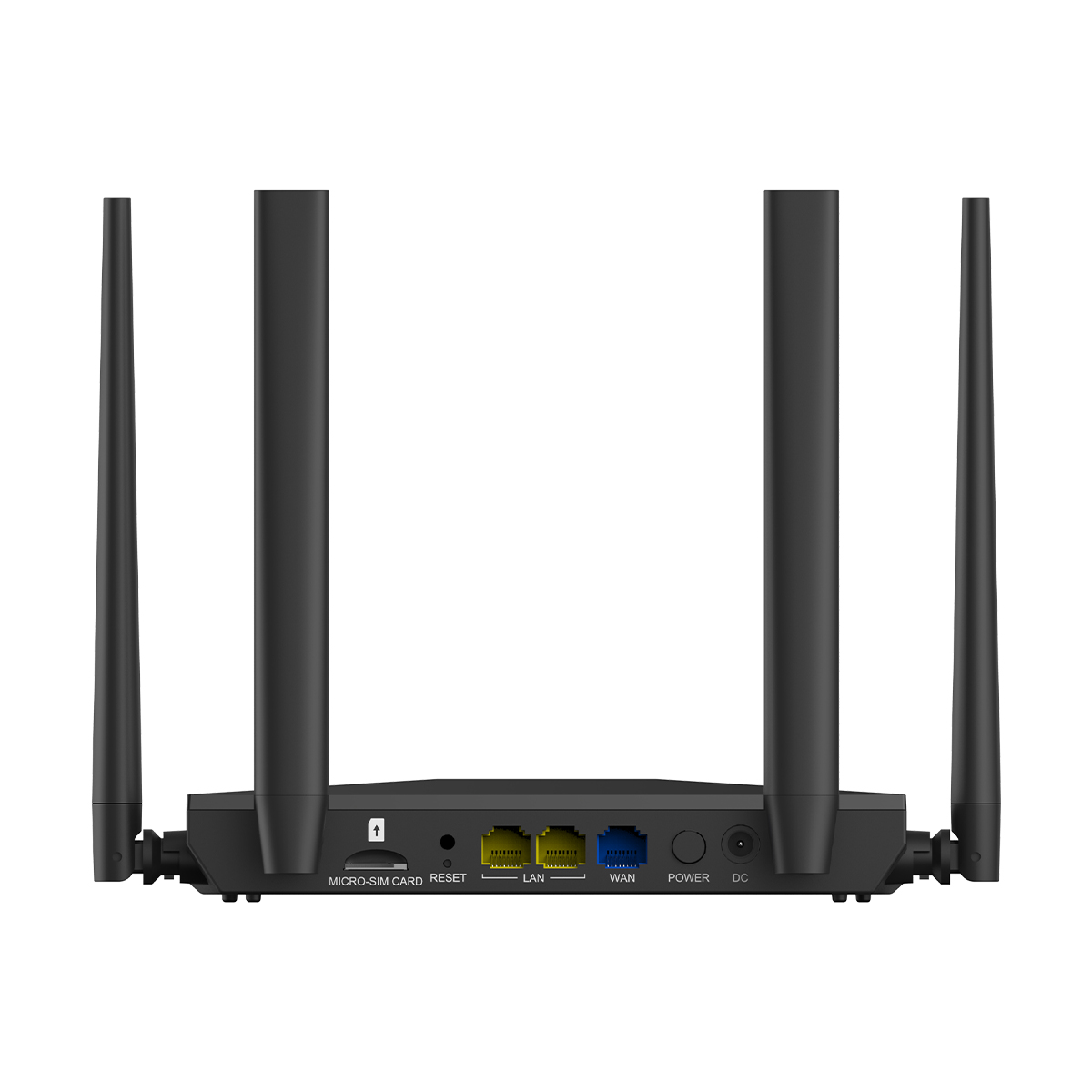

1wan 2lan port, support broadband wired access

wechat remote management, more convenient to set internet parameters

  • 1
  • 2
  • 3
  • 4
1
2
3
4
g0

product parameters

product hardware specifications

product model 4g route g0
wireless protocol ieee802.11 b/g/n
port

one 10/100/1000m adaptive wan port
two 10/100/1000m adaptive lan port

forwarding rate 10/100mbps
wireless specifications 2.4g band: 300mbps;
antenna 2 high-gain omnidirectional antennas,2 4g antennas
ram 64mb(inner package)
rom 8mb
sim card slot micro-sim card (standard large card)
led display 7 led indicators
button reset*1, power*1
power supply externa 12v 1a
operating environment

operating temperature: 0°c ~ 40°c
storage temperature: -20°c ~ 70°c
operating humidity: 10% ~ 90%, non-condensing
storage humidity: 5% ~ 90%, non-condensing

product software specifications

common functions

internet settings
wi-fi settings
signal conditioning
friends only network
child mode
indicator schedule off
wi-fi schedule off
port mapping
peanut shell dynamic domain name
one-click switchpeanut shell domain name access

security

peanut shell dynamic domain name
peanut shell dynamic domain name
wi-fi squatter firewall
home network firewall
ddos firewall

basic settings

system upgrade
restart router
reset
dial log
change management password
modify router address
my router information
time setting

others wechat management
