full gigabit port, suitable for all mainstream broadband access
1ghz high-end chip 128m flash memory 128m memory, strong performance
2.4g 5g dual-band, wi-fi switching automatically connected
support one-click mesh networking, whole house wi-fi, seamless roaming
simple operation, great effect

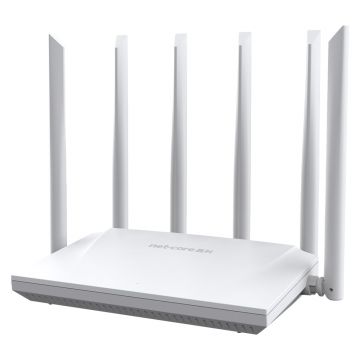

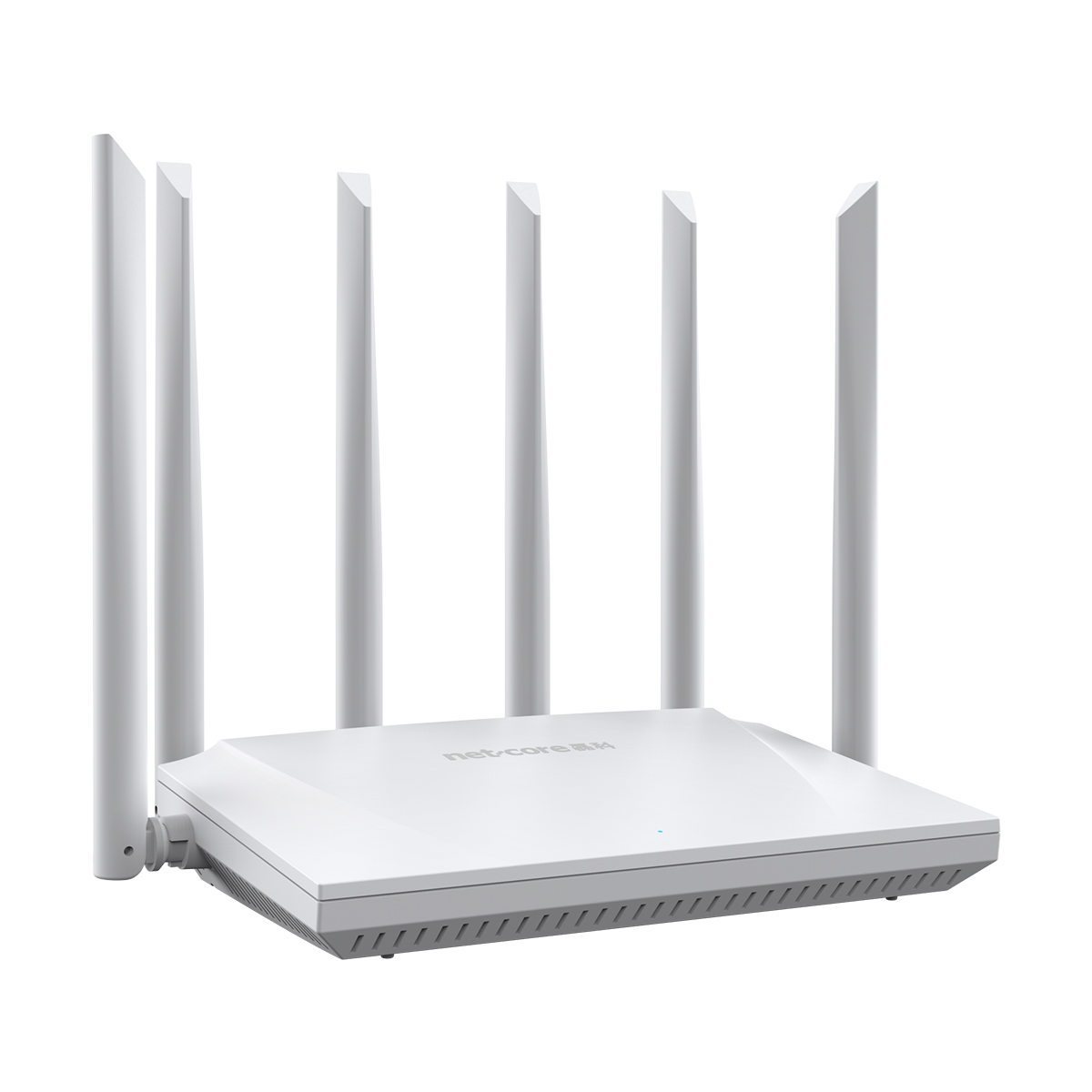

| product model | power 9s pro （ high-end version） |
| wireless protocol | ieee802.11 b/g/n/ac |

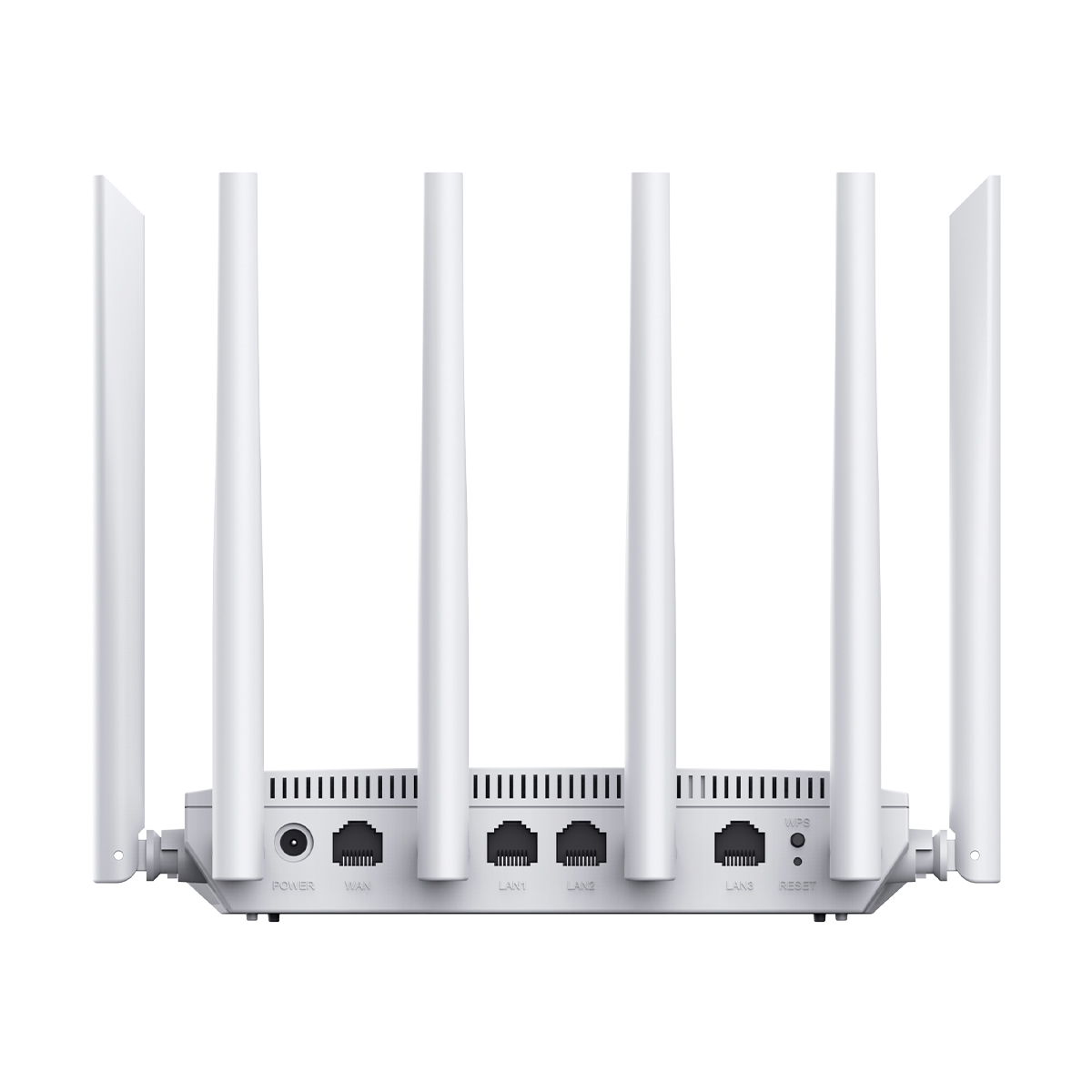

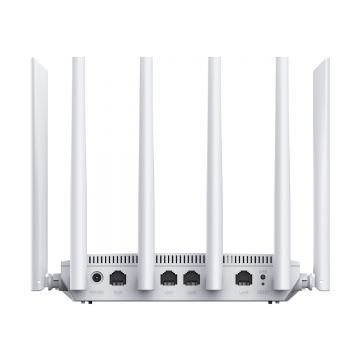

| port |
one 10/100/1000m adaptive wan port |
| forwarding rate | 10/100/1000mbps |
| wireless specifications | 2.4g band: 300mbps; 5g band: 867mbps |
| antenna | 6 high-gain omnidirectional antennas |
| cpu | zte micro 1ghz dual core |
| flash memory | 128mb |
| memory | 128mb |
| button | reset×1 |
| led display | pwr、internet |
| mesh button | wps×1 |
| dimensions | 182mm×108mm×25mm |
| power supply | dc 12v/1a |
| operating environment | operating temperature: 0°c ~ 40°c storage temperature: -20°c ~ 70°c operating humidity: 10% ~ 90%, non-condensing storage humidity: 5% ~ 90%, non-condensing |
| home page | sign out go to the official website internet 联网状态 current internet speed device runtime gateway reboot mesh networking internet-connected devices wireless network settings intranet settings internet settings router information iptv |
| network | signal strength adjustment guest network ipv6 mesh topology iptv advanced settings wireless relay port mapping |
| system |
manage passwords |
