power 10ax-九游会棋牌

1800m home wi-fi6 router

support wi-fi6 wireless protocol

equipped with 1ghz high-end chip, 256m flash memory 128m memory

full gigabit port to enjoy gigabit internet speed, 1800mbps wireless dual-band signal

support one-click mesh networking, whole house wi-fi, seamless roaming

  • 1
  • 2
  • 3
  • 4
  • 5
1
2
3
4
5

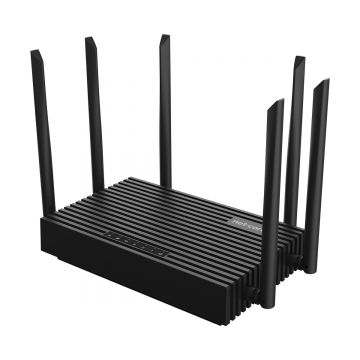

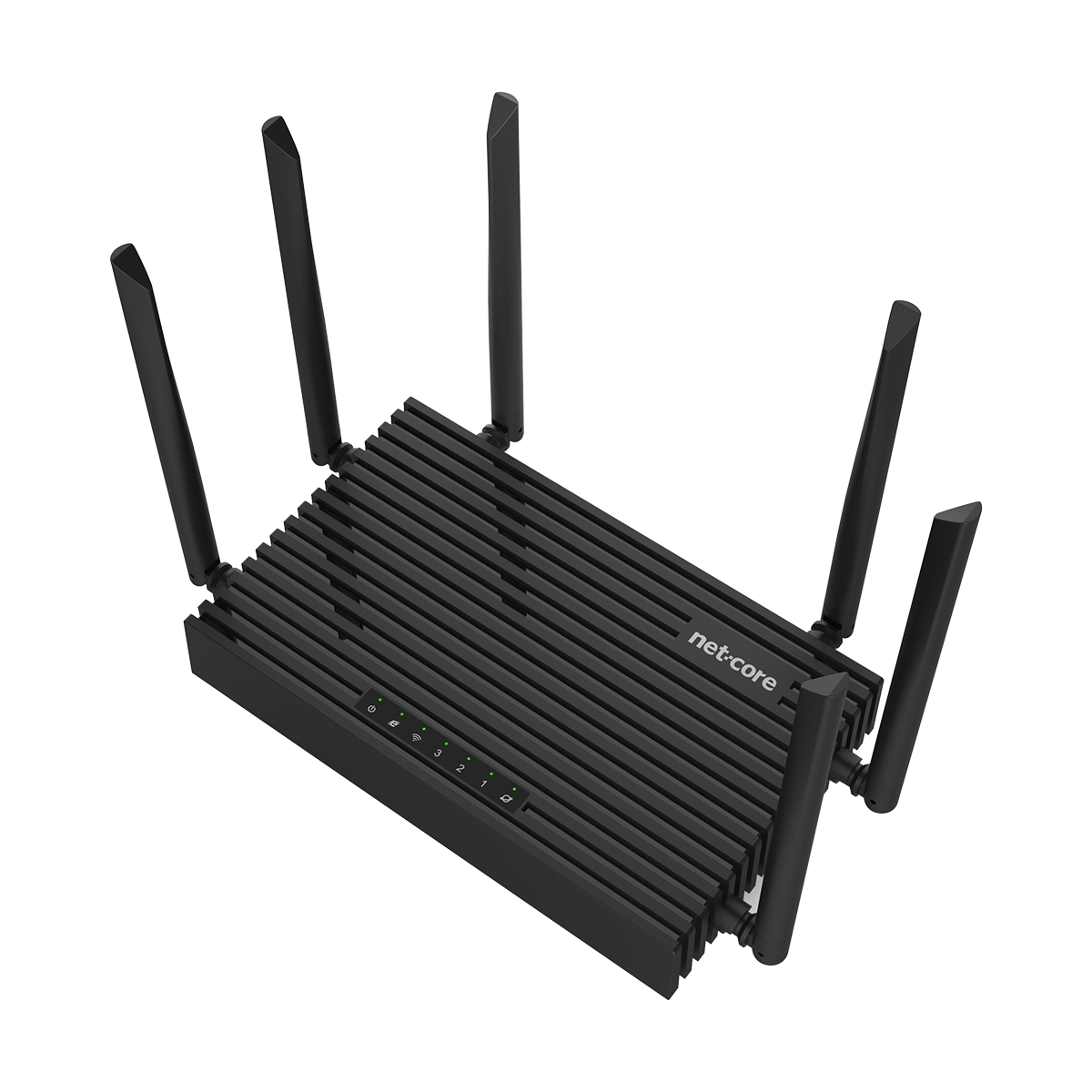

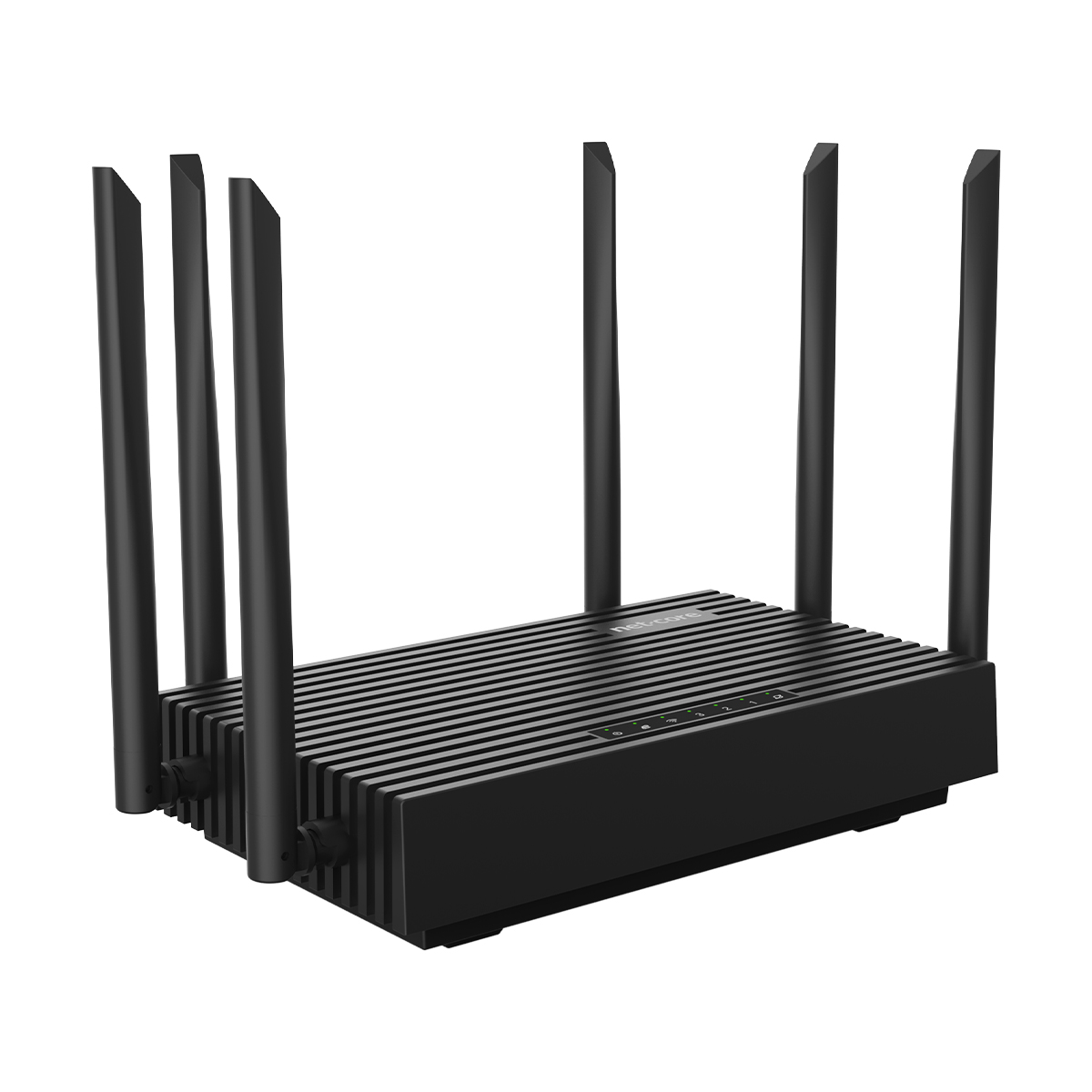

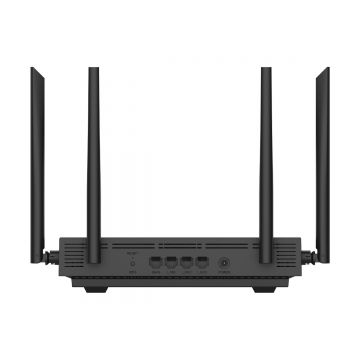

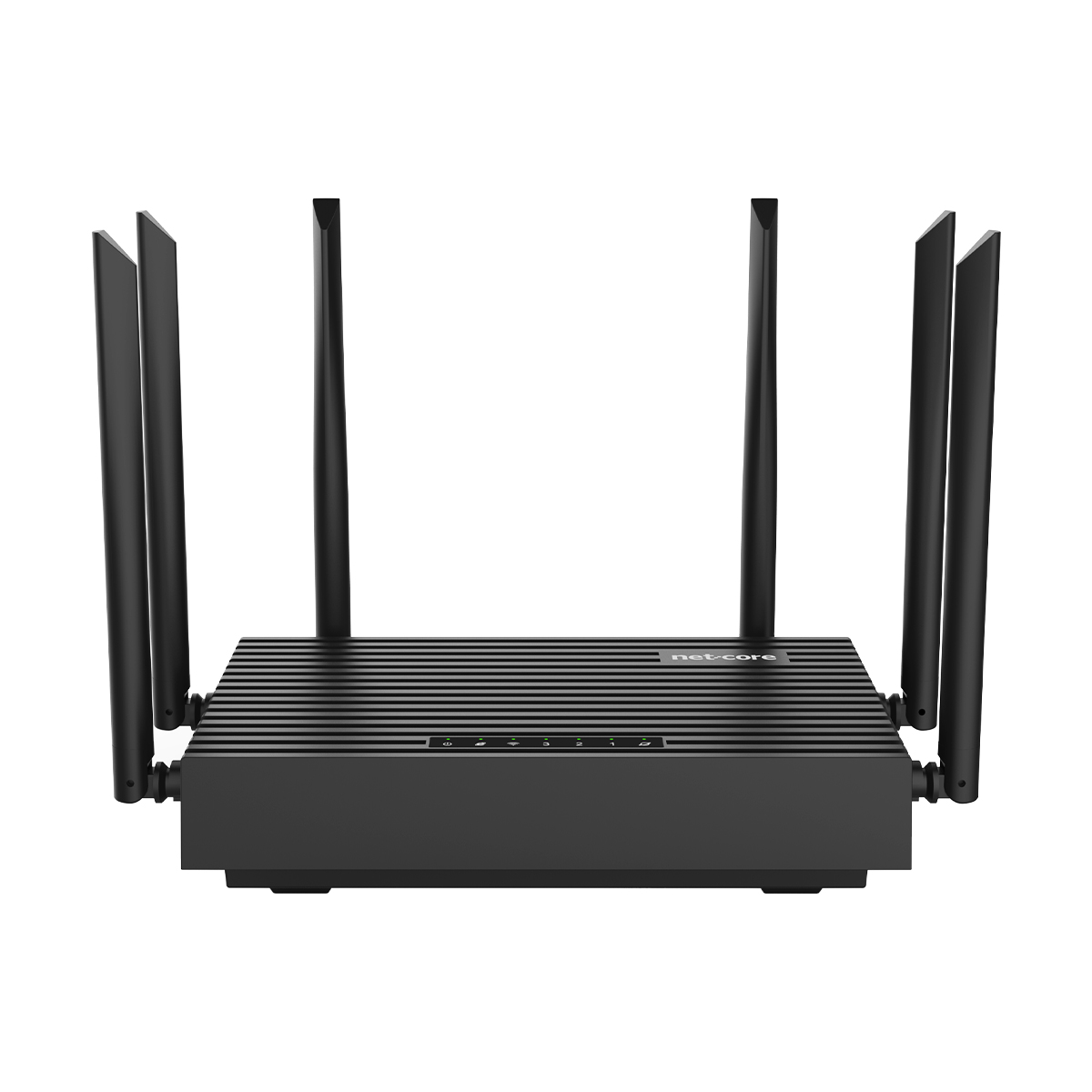

power 10ax

product parameters

product hardware specifications

product model power 10ax (wifi6)
product model ieee802.11 b/g/n/ac/ax

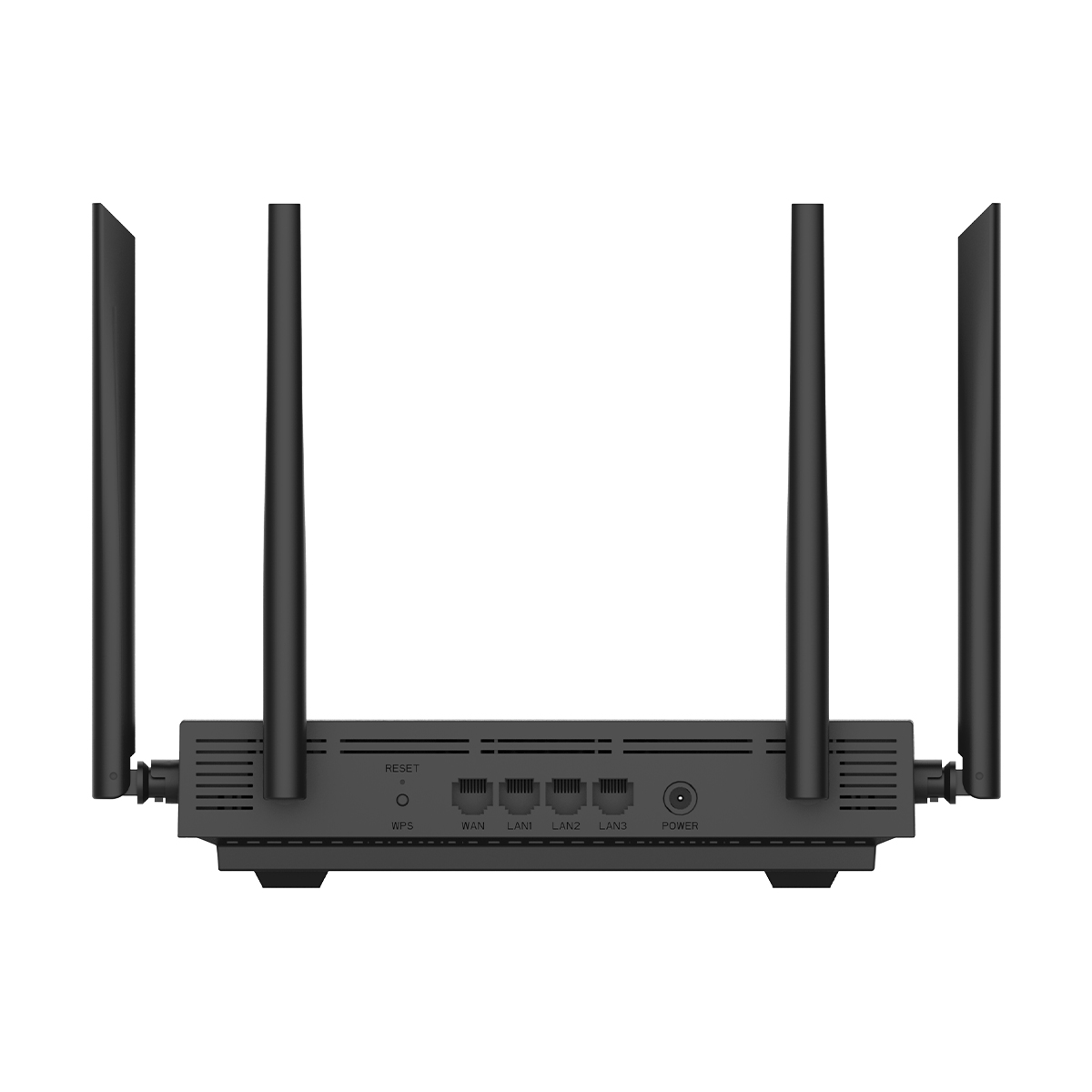

port
one 10/100/1000m adaptive wan port
three 10/100/1000m adaptive lan port
forwarding rate 10/100/1000mbps
wireless specifications 2.4g band: 574mbps; 5g band: 1201mbps
antenna 6 high-gain omnidirectional antennas
cpu 1ghz (dual core)
ram 256mb(internally packaged in the main ic)
rom 128mb
button default×1
led indicator pwr、internet、wifi、lan1、lan2、lan3、wan
mesh button wps×1
dimensions 236mm×144mm×50mm
power supply 12v/1a
operating environment operating temperature: 0°c ~ 40°c
storage temperature: -20°c ~ 70°c
operating humidity: 10% ~ 90%, non-condensing
storage humidity: 5% ~ 90%, non-condensing

product software specifications

common functions quick configuration
one key speed test
troubleshooting
internet settings
wi-fi settings
signal conditioning
internet-connected devices
guest network
intranet settings
ipv6
mesh networking
wireless relay
iptv
port mapping
security malicious url firewall
internet hijacking firewall
wi-fi squatter firewall
blacklist management
basic settings

system upgrade
restart router
initialize (reset)
dial log
change management password
my router information
time settingdeveloper mode

others emergency recovery
mobile web
