power 8s-九游会棋牌

full gigabit large house smart wireless router

full gigabit ports, suitable for broadband access over 200m

built-in pa signal amplifier, longer signal transmission distance

1ghz high-end chip 128m memory, stable capacity of 80 units

2.4g 5g dual-band integration, whole-house wi-fi, seamless roaming

wechat remote management, more convenient to set parameters



  • 1
  • 2
  • 3
  • 4
  • 5
1
2
3
4
5
power 8s

product parameters

product hardware specifications

product model power 8s black
wireless protocol ieee802.11 b/g/n/ac

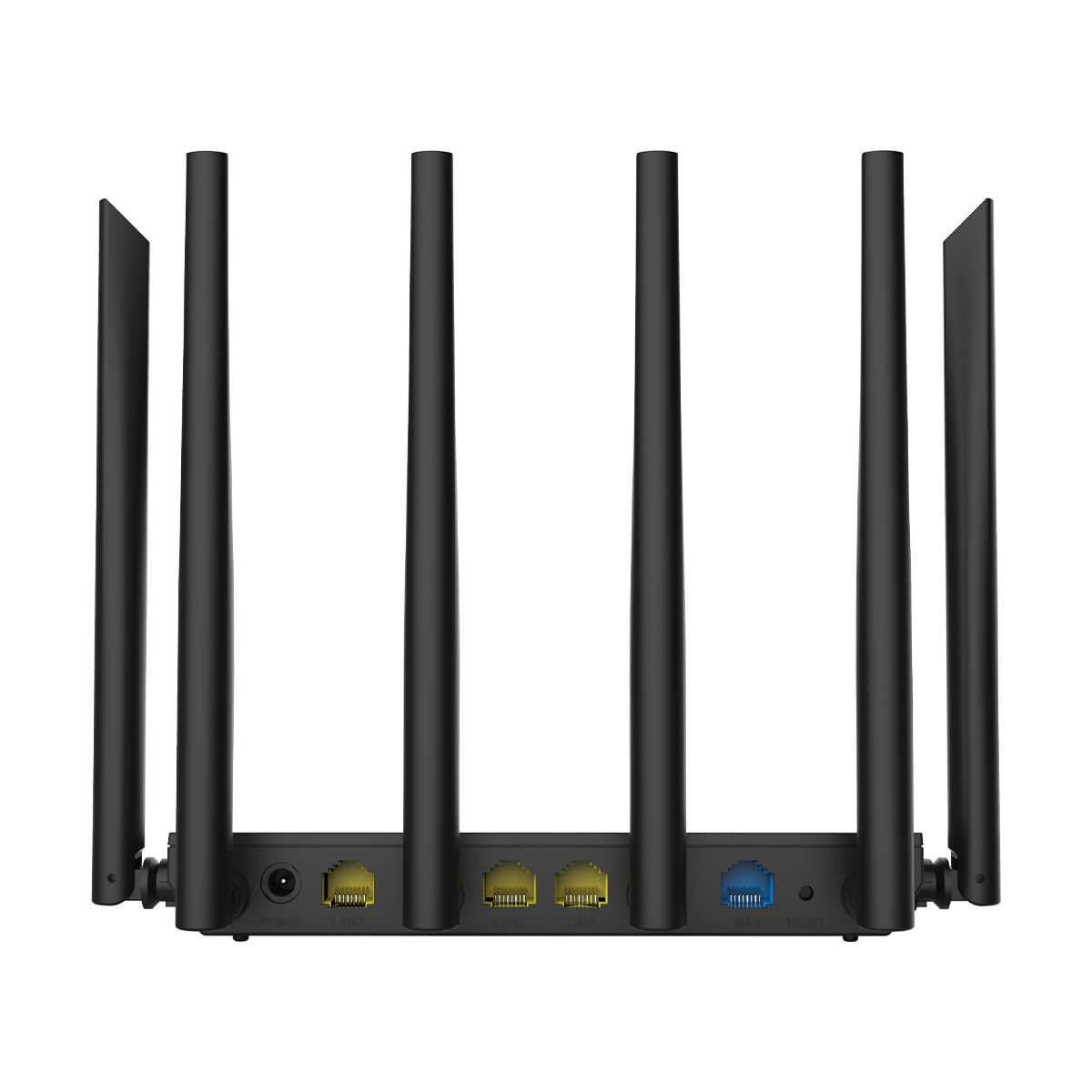

port

one 10/100/1000m adaptive wan port
three 10/100/1000m adaptive lan port

forwarding rate 10/100/1000mbps
wireless specifications 2.4g band: 300mbps; 5g band: 867mbps
antenna 6根7dbi高增益全向天线
ram 128mb
rom 8mb
button reset
led indicator

1 green and 1 red led

button default
dimensions 182mm×108mm×25mm(antenna leveling)
power supply 12v/1a
operating environment operating temperature: 0°c ~ 40°c
storage temperature: -20°c ~ 70°c
operating humidity: 10% ~ 90%, non-condensing
storage humidity: 5% ~ 90%, non-condensing

product software specifications

common functions quick configuration
one key speed test
troubleshooting
internet settings
wi-fi settings
signal conditioning
wireless universal relay
friends only network
child mode
indicator schedule off
wi-fi schedule off
port mapping
peanut shell dynamic domain name
indicator schedule off
wi-fi schedule off
internet blacklist
internet host list
one-click switch
peanut shell domain name access
security malicious url firewall
internet hijacking firewall
wi-fi squatter firewall
home network firewall
ddos firewall
basic settings

system upgrade
restart router
reset
dial log
change management password
modify router address
my router information
time settings
developer mode

others wechat management
plugin center
emergency recovery
