ns2310gpe-九游会棋牌

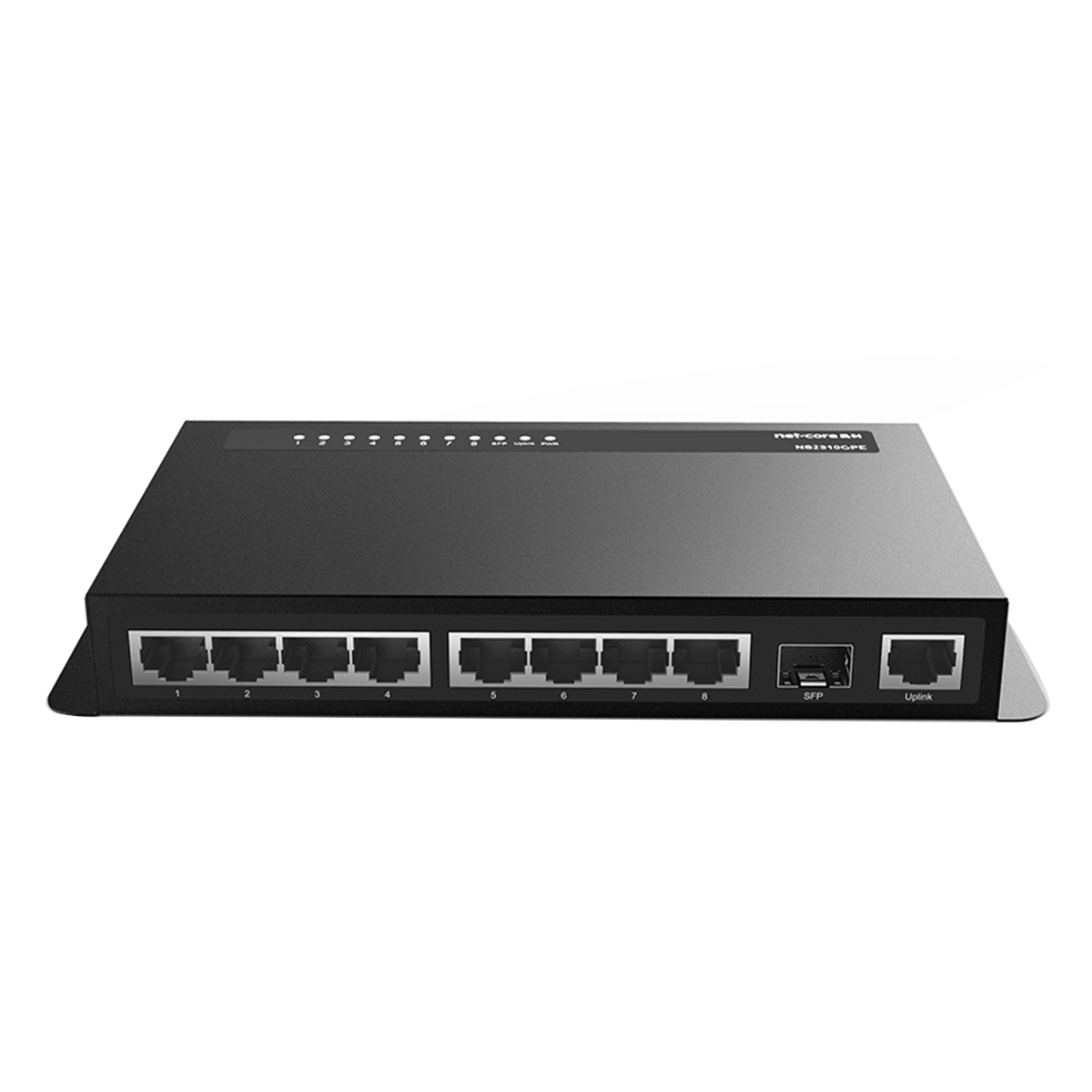

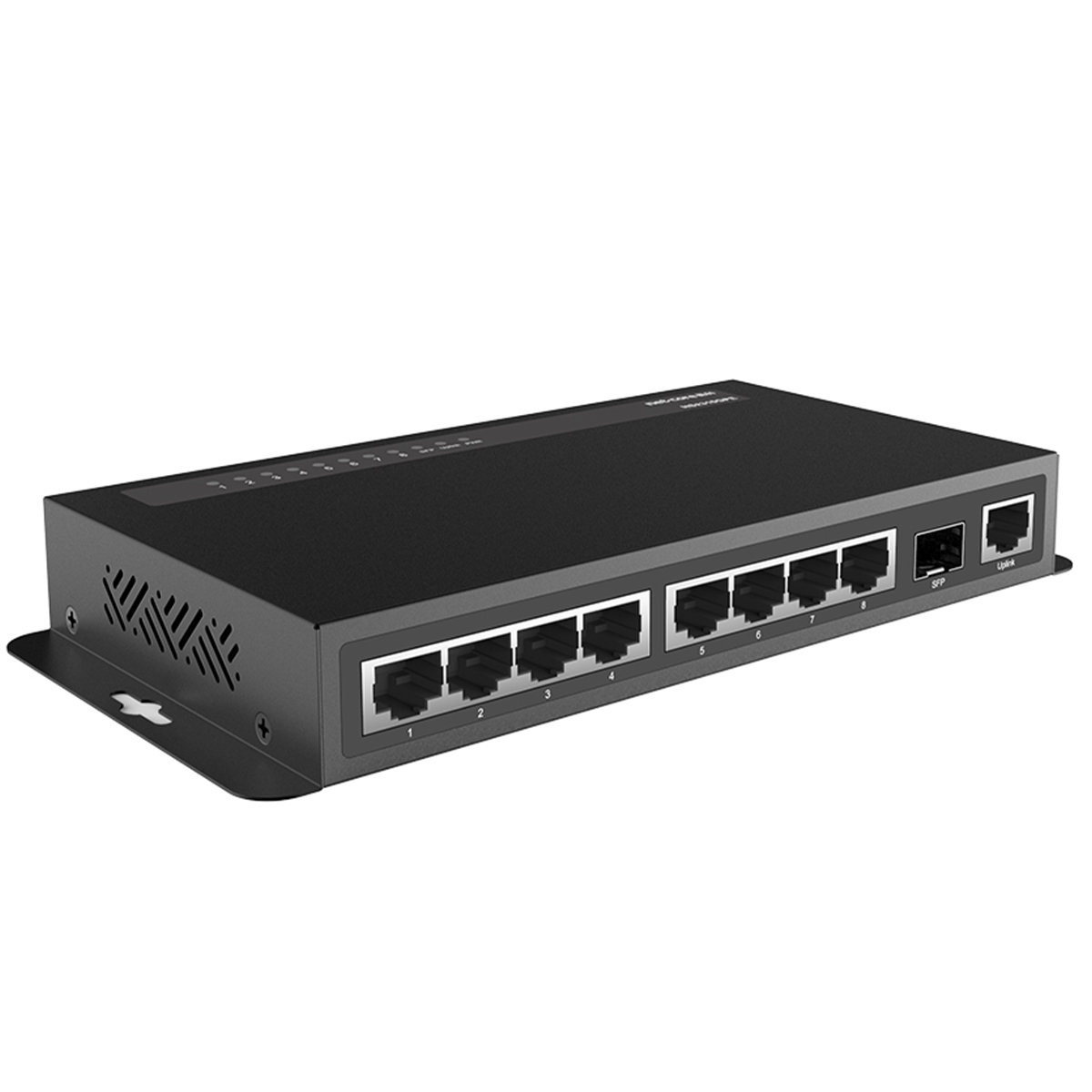

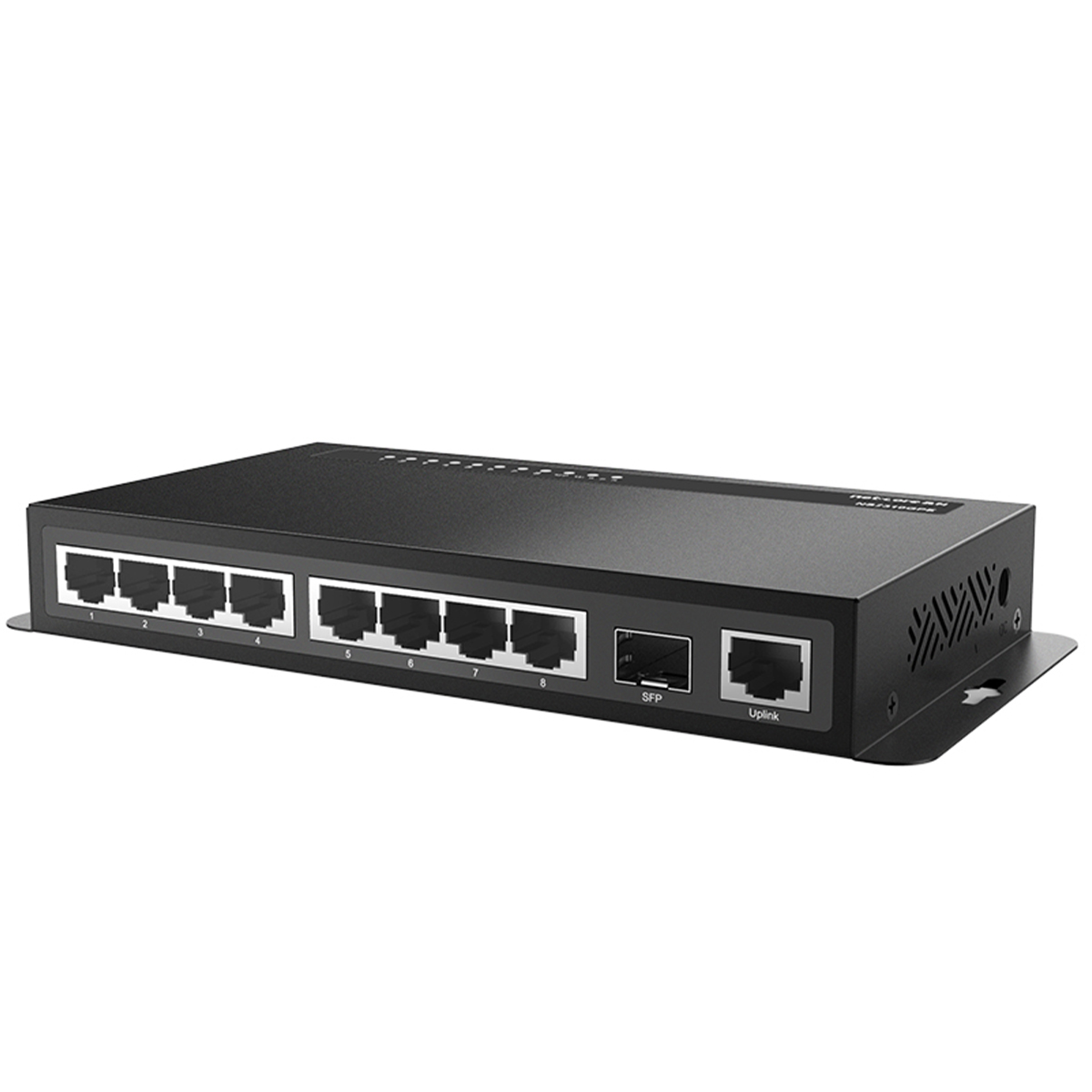

8ge 2ge 1sfp gigabit poe switch

provide 8 10/100/1000m poe ports 2 10/100/1000m uplink rj45 ports 1sfp uolink port. the ports can automatically detect and identify the power receiving devices that conform to the ieee 802.3at/af standard and supply power through the network cable, which can be used as power over ethernet devices; 2 gigabit uplink ports are designed to maximize port utilization.

  • 3
  • 2
  • 1
3
2
1
ns2310gpe

product parameters

product hardware specifications

product model

ns2310gpe
standard protocol ieee802.3af/at series protocol
ieee802.3 ethernet media access control protocol
ieee802.3i 10base-t ethernet
ieee802.3u 100bast-tx fast ethernet
ieee802.3ab 1000base-t gigabit ethernet
ieee802.3x flow control
port

8*10/100/1000m poe rj45 port
2*10/100/1000m uplink rj45 port

1* sfp uplink port

poe standard

standard ieee802.3af/at protocol, the maximum power of a single port is 30w

support overcurrent, overvoltage, short circuit protection

support high power pd soft start

support sequential boot

support certified non-standard pd power receiving

forwarding mode store and forward
forwarding rate 10/100/1000mbps
access method csma/cd
default working mode normal switch mode
size 180mm(l)* 100mm(w)* 27mm (h)
power dc input 44v-57v 50/60hz
working environment

operating temperature: 0°c ~ 40°c

storage temperature: -20°c ~ 70°c

operating humidity: 10% ~ 90%, rh  non-condensing

storage humidity: 5% ~ 90%, rh non-condensing
