4ge poe 1ge 1ge(rj45/sfp) uplink poe switch

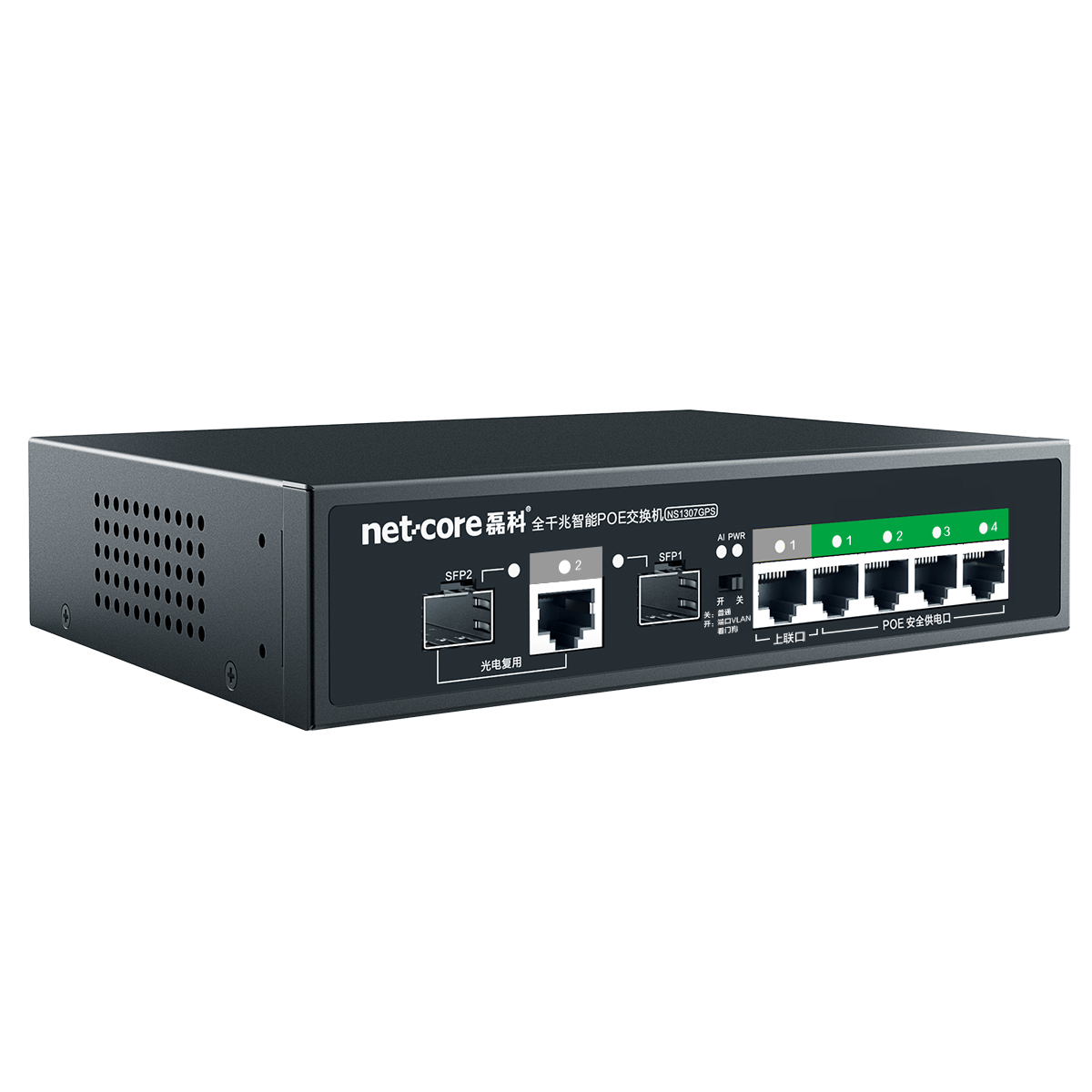

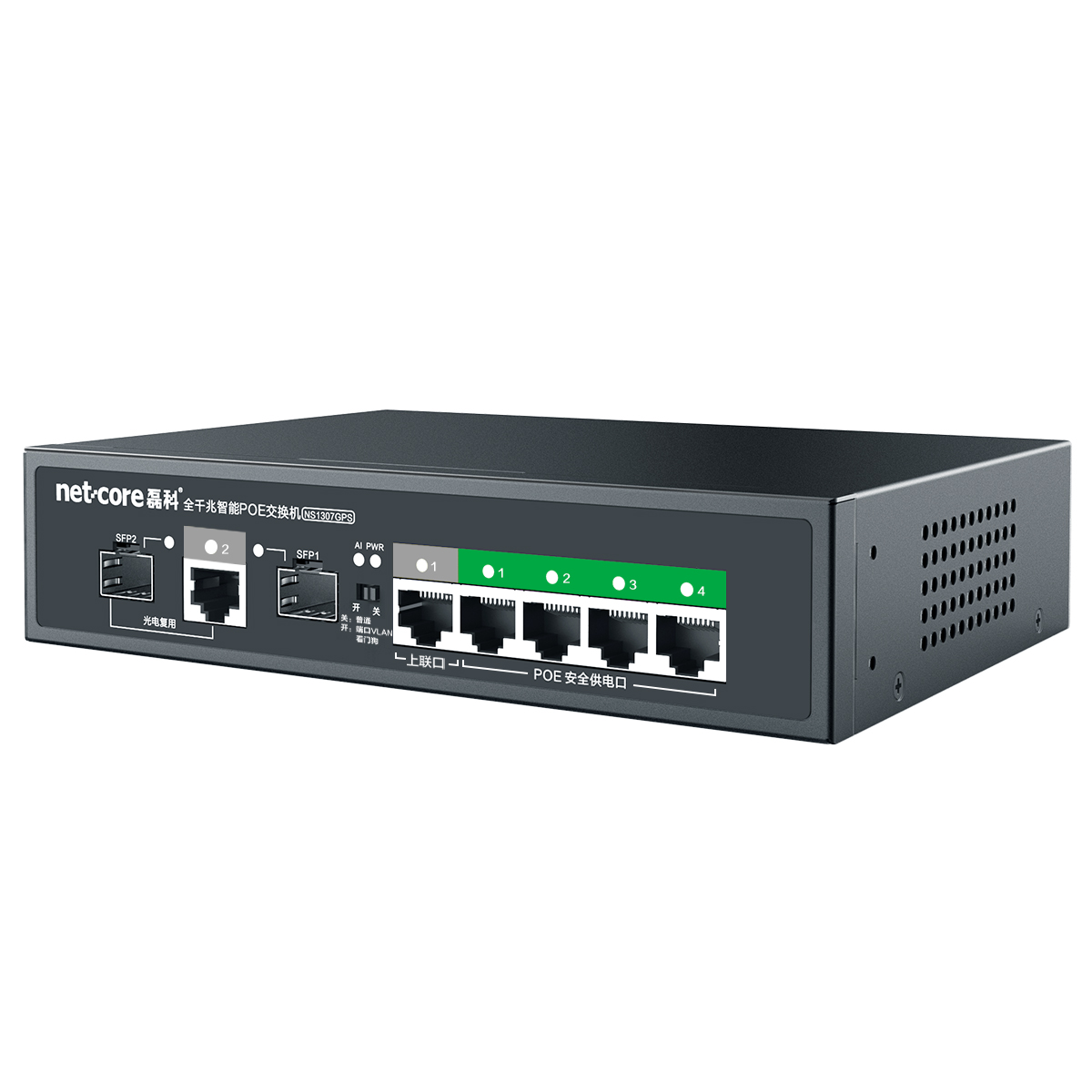

-provides 4 gigabit poe rj45 ports and 1 gigabit uplink rj45 port and 1 gigabit (rj45/sfp) uplink port

-supports poe power up to 30w for each poe port ,65w for all poe ports

-supports poe ieee 802. 3at/af compliant powered device (pd)

-ieee 802.3x flow control for full duplex mode and backpressure for half duplex mode

-4kv professional surge protection

-supports 2k mac address table, mac address auto-learning & auto-aging

-steel case, plug and play, no configuration required

product model	ns1307gps
standard protocol	ieee802.3af/at series protocol ieee802.3 ethernet media access control protocol ieee802.3i 10base-t ethernet ieee802.3u 100bast-tx fast ethernet ieee802.3ab 1000base-t gigabit ethernet ieee802.3x flow control
port	410/100/1000m poe rj45 port 210/100/1000m uplink rj45 port 1*10/100/1000m (rj45/sfp) port
poe standard	standard ieee802.3af/at protocol, the maximum power of a single port is 30w, and the maximum power of the machine is 65w support overcurrent, overvoltage, short circuit protection support high power pd soft start support sequential boot support certified non-standard pd power receiving
forwarding mode	store and forward
forwarding rate	10/100/1000mbps
backplane bandwidth	16gbps
mac address table	2k
access method	csma/cd
default working mode	normal switch mode/vlan isolation
dimension	190mm×140mm×43mm

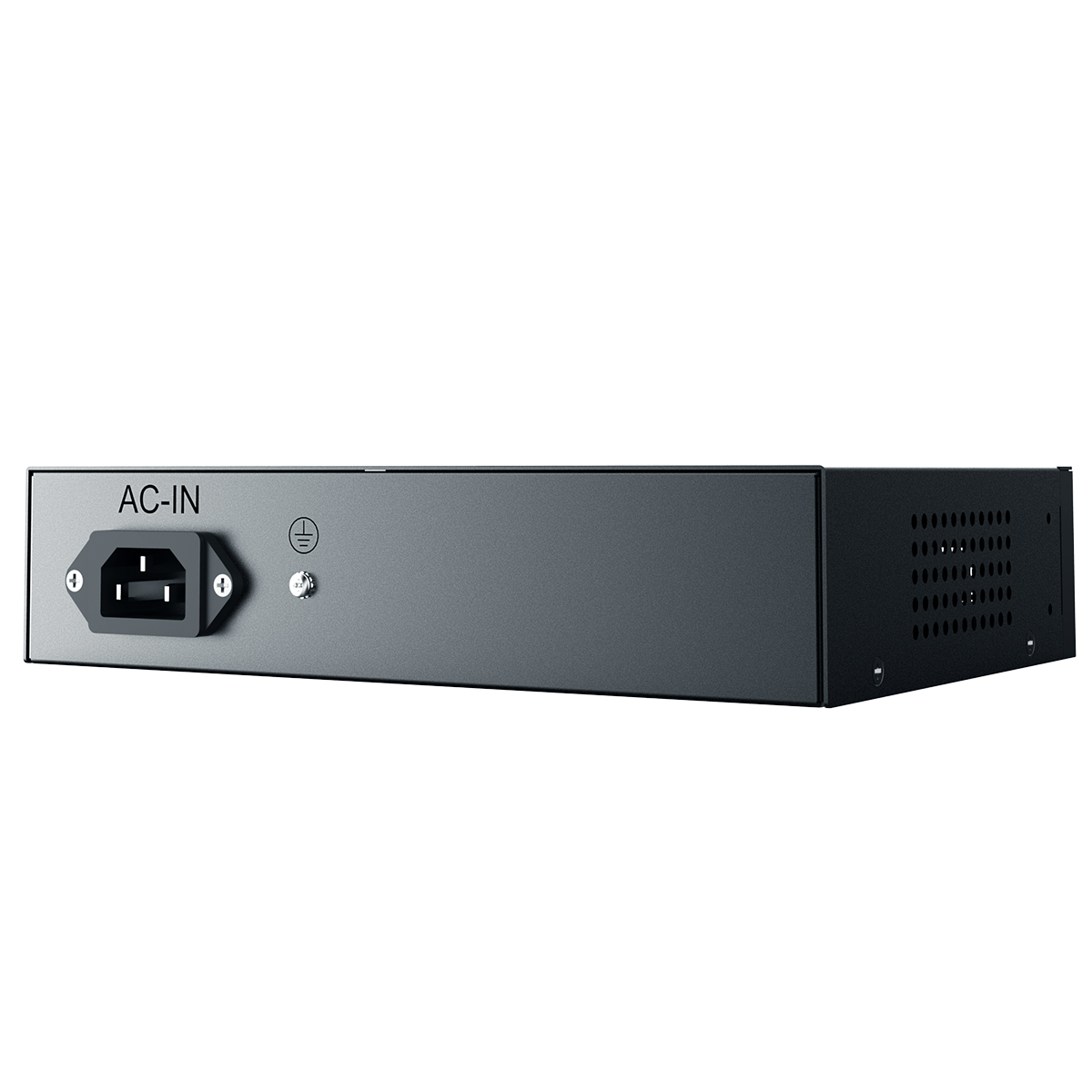

power	ac input 110v-220v 50/60hz
working environment	operating temperature: 0°c ~ 40°c storage temperature: -40°c ~ 70°c operating humidity: 10% ~ 90%, rh non-condensing storage humidity: 5% ~ 90%, rh non-condensing
