vertical design has more powerful heat dissipation capability
3000m is coming at full speed, experience the internet at high speed
160mhz wide bandwidth, double the internet access rate
equipped with dual-core 2ghz high-performance chip, the data processing capacity is faster
easy mesh networking, a green hand turns into an expert soon simple, concise and poised , easier for placement,collection and storage
product model | power 30ax (wifi6) |
product model | ieee802.11 b/g/n/ac/ax |

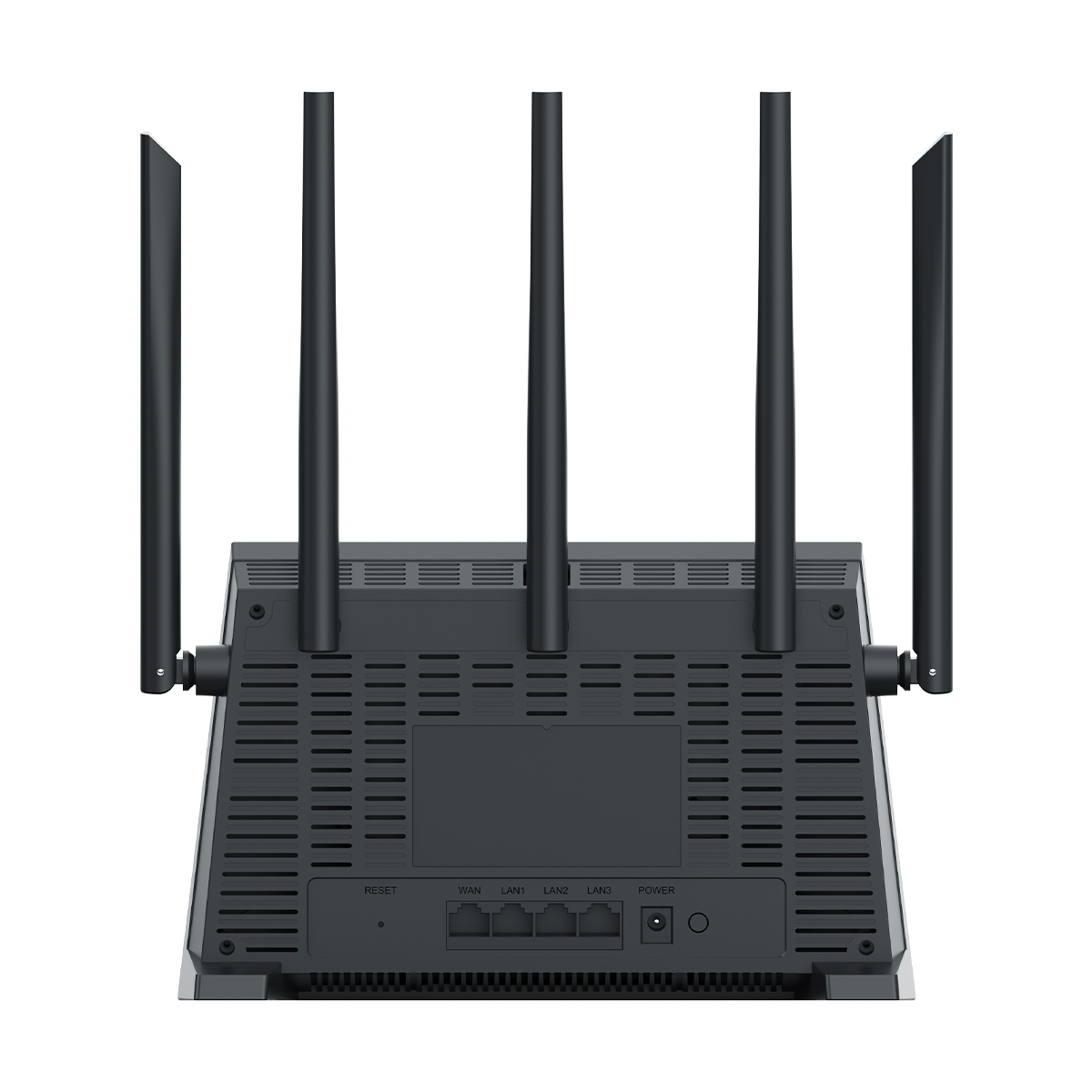

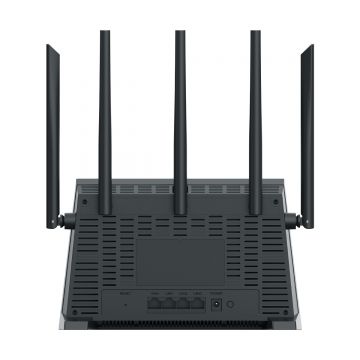

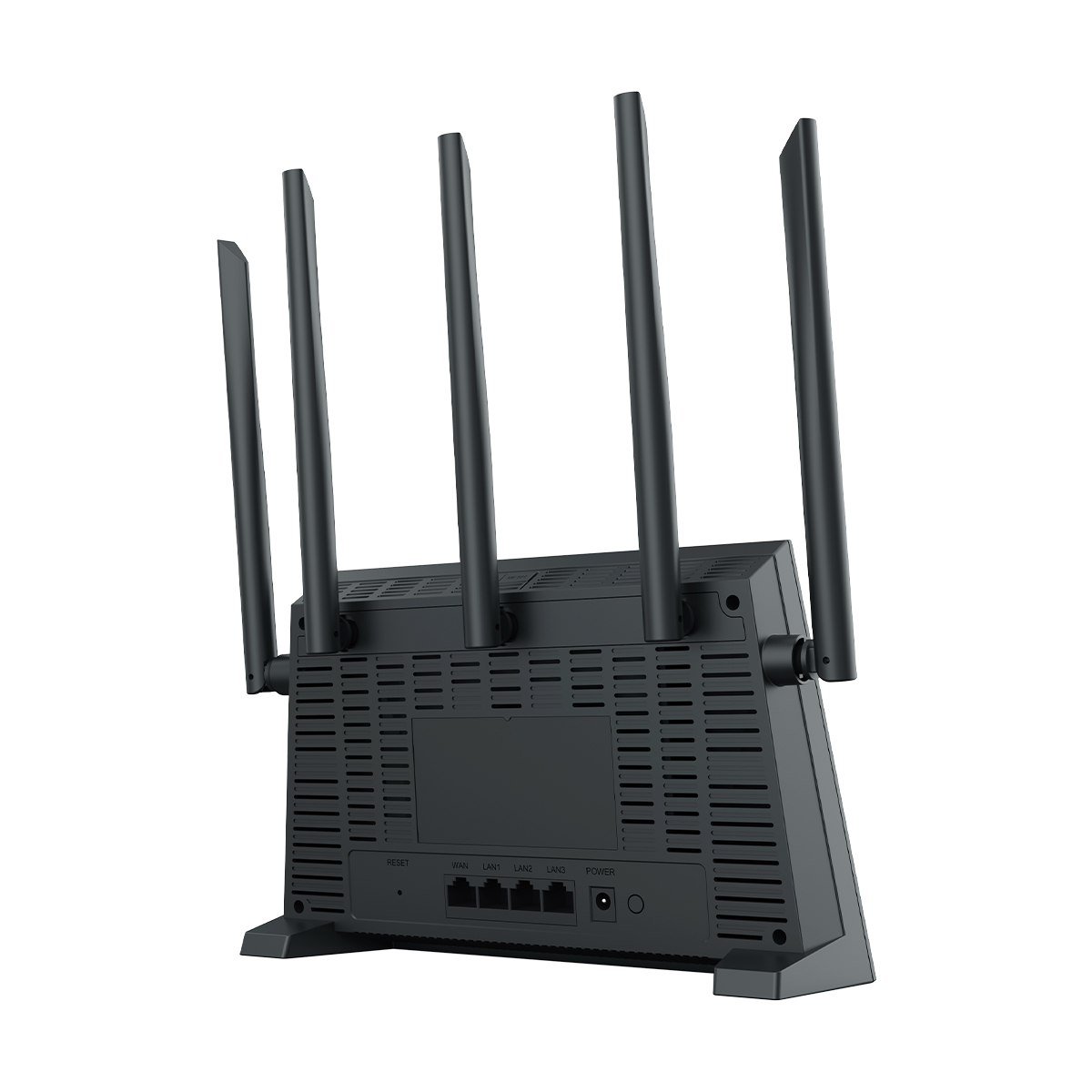

port |
1* 10/100/1000m rj45 wan port
3* 10/100/1000m rj45 lan port |
forwarding rate | 10/100/1000mbps |
wireless specifications | 2.4g band: 574mbps; 5g band: 2402mbps |
antenna | 5 high-gain omnidirectional antennas |
cpu | 2ghz(dual-core) |
ram | 256mb(internally packaged in the main ic) |
rom | 16mb |
button | reset×1 |
led indicator | pwr、internet、wifi、lan1、lan2、lan3、wan |
mesh button | mesh×1 |
dimensions | 233mm×164mm×92mm |
power supply | 12v/1a |
operating environment | operating temperature: 0°c ~ 40°c storage temperature: -20°c ~ 70°c operating humidity: 10% ~ 90%, non-condensing storage humidity: 5% ~ 90%, non-condensing |
common functions | quick configuration one key speed test troubleshooting internet settings wi-fi settings signal conditioning internet-connected devices guest network intranet settings ipv6 mesh networking wireless relay iptv port mapping |
security | malicious url firewall internet hijacking firewall wi-fi squatter firewall blacklist management |
basic settings |
system upgrade |
others | emergency recovery mobile web |
